LMK..UU_LMF..UU

They are often used on steel tracks as guides and supports. The shields serve to offer protection to prevent ingress of debris and dust whilst retaining the grease within the bearing.

Category：

Linear motion bearings

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Inquire

LMK..UU_LMF..UU

LMF&LMK&LMH (Flange Type)

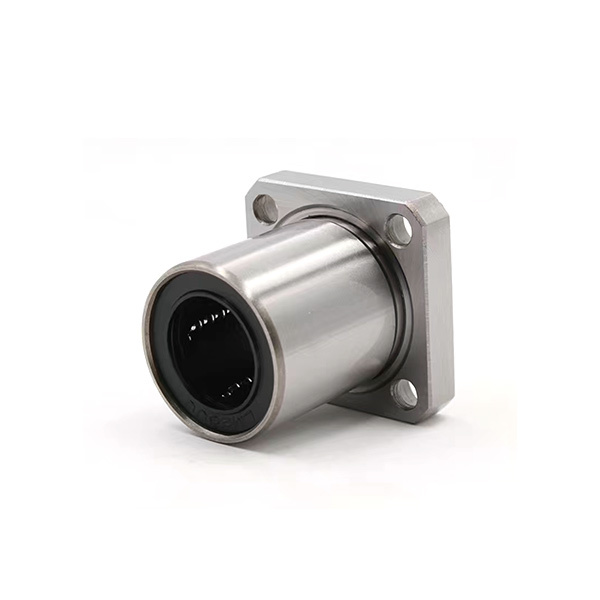

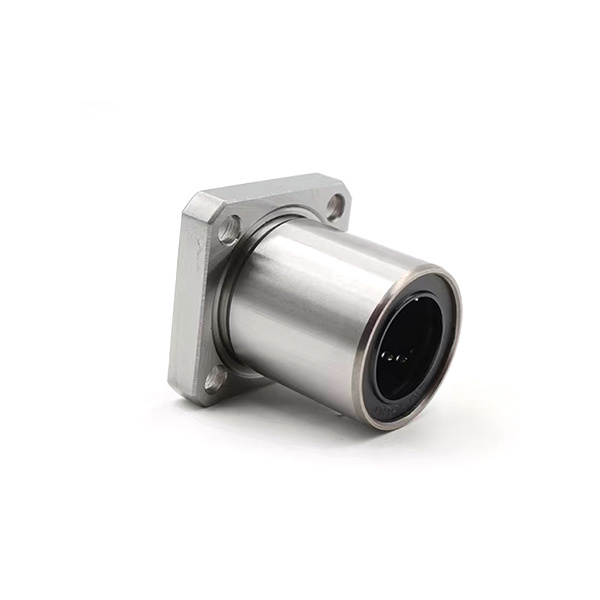

LMF LMK LMH Linear Bearing Bushing with Round/Square/oval Flange.
These bearings have the flange to allow fitting into housings flush against the shoulder of the flange.
They are often used on steel tracks as guides and supports.
The shields serve to offer protection to prevent ingress of debris and dust whilst retaining the grease within the bearing.

Flange Type Bearing Number			d mm	D mm	L mm
Circular	Square	Oval	d mm	D mm	L mm
LMF 6UU	LMK 6UU	LMH 6UU	6	12	19
LMF 8SUU	LMK 8SUU		8	15	17
LMF 8UU	LMK 8UU	LMH 8UU	8	15	24
LMF 10UU	LMK 10UU	LMH 10UU	10	19	29
LMF 12UU	LMFK12UU	LMFH12UU	12	21	30
LMF 13UU	LMK 13UU	LMH 13UU	13	23	32
LMF 16UU	LMK 16UU	LMH 16UU	16	28	37
LMF 20UU	LMK 20UU	LMH 20UU	20	32	42
LMF 25UU	LMK 25UU	LMH 25UU	25	40	59
LMF 30UU	LMK 30UU	LMH 30UU	30	45	64
LMF 35UU	LMK 35UU		35	52	70
LMF 40UU	LMK 40UU		40	60	80
LMF 50UU	LMK 50UU		50	80	100
LMF 60UU	LMK 60UU		60	90	110
LMF 80UU	LMK 80UU		80	120	140
LMF 100UU	LMK 100UU		100	150	175
