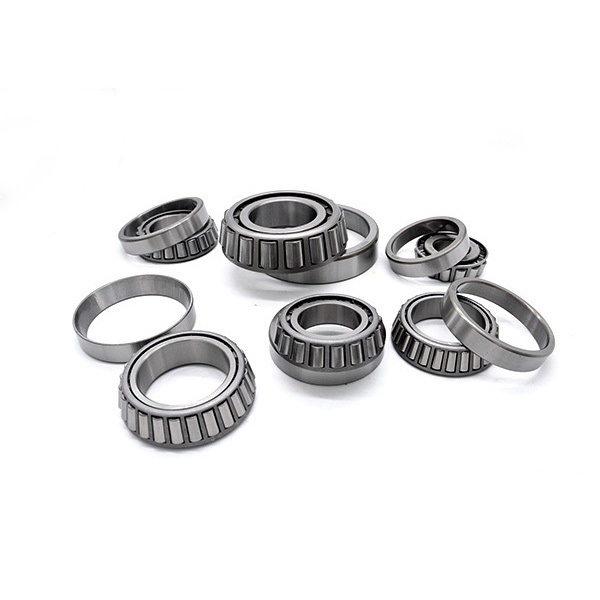

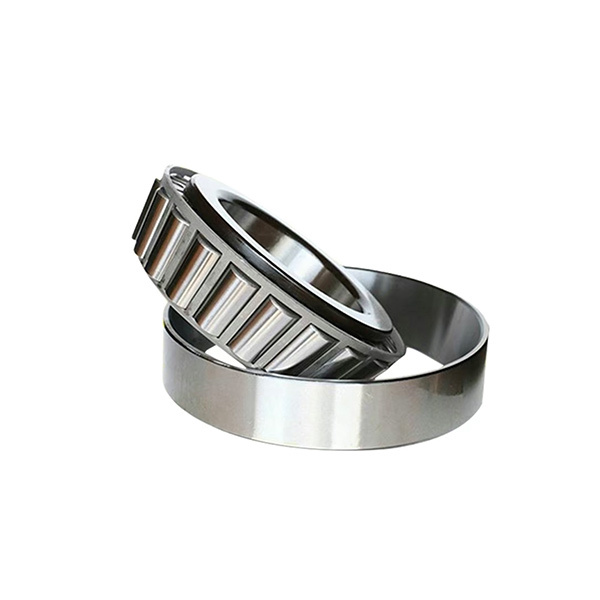

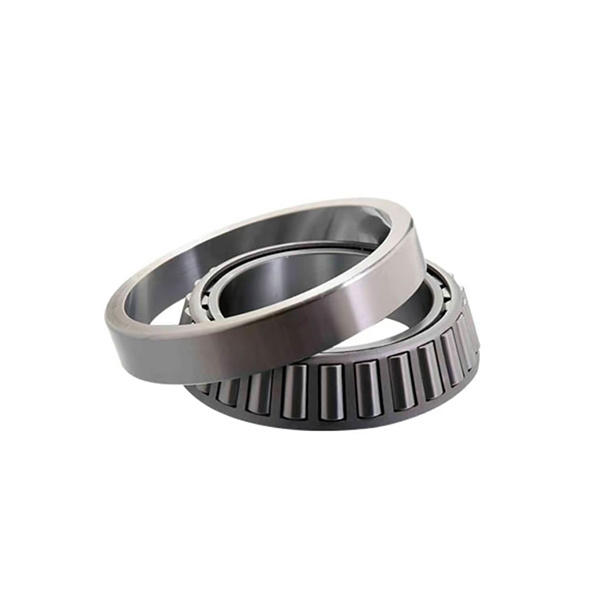

Single Row

Single-row tapered roller bearings can withstand radial and axial loads mainly based on radial loads, while large taper angle bearings can withstand radial and axial loads mainly based on axial loads, and additional radial loads are generated under the action of radial loads. axial force. Therefore, it is generally configured in pairs and can withstand radial loads. If used alone, the external axial force must be greater than the additional axial force.

Category：

Tapered roller bearings

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Inquire

Single Row

Bearing Number	Dimensions(mm)
32209	45×85×24.75
32210	50×90×24.75
32211	55×100×26.75
32212	60×110×29.75
32213	65×120×32.75
32214	70×125×33.25
32215	75×130×33.25
32216	80×140×32.25
32217	85×150×38.5
32218	90×160×42.5
32218/Z	90×160×42.5
32218/Z1	90×160×42.5
32219	95×170×45.5
32220	100×180×40
32221	105×90×53
32222	110×200×56
32224	120×215×61.5
32226	130×230×67.75
32228	140×250×71.75
32230	150×270×77
32232	160×290×84
32234	170×310×91
32236	180×320×91
32238	190×340×97
32240	200×360×104
32244	220×400×115
32248	240×440×127
32252	260×480×137
32256	280×500×137
33205	25×52×22
332/28	28×58×24
33206	30×62×25
332/32	32×65×18.25
33207	35×72×28
33208	40×80×32
33209	45×85×32
33210	50×90×32
33211	55×100×35
33212	60×110×38
33213	65×120×41
33213/YB2	65×120×41
33214	70×125×41
33215	75×130×41
33216	80×140×46
33217	85×150×49
33218	90×160×55
33219	95×170×58
33220	100×180×63
33221	105×190×68
30302	15×47×15.25
30304	20×52×16.25
30305	25×62×18.25
30306	30×72×20.75
30307	35×80×22.75
30308	40×90×25.25
30309	45×100×27.25
30310	50×110×29.25
30311	55×120×31.5
30312	60×130×31.5
30313	65×140×36
30314	70×150×38
30315	75×160×40
30316	80×170×42.5
30317	85×180×44.5
30318	90×190×46.5
30319	95×200×49.5
30320	100×215×51.5
30321	105×225×53.5
30322	110×240×54.5
30324	120×260×59.5
30326	130×280×63.75
30328	140×300×63.75
30330	150×320×63.75
30332	160×340×75
30334	170×360×80
30336	180×380×83
30338	190×400×86
30340	200×420×89
30344	220×460×97
30348	240×500×105
30352	260×540×113
32303	17×47×20.25
32304	20×52×22.25
32305	25×62×25.5
32306	30×72×28.75
32306AN	30×72×28.75
323/32	32×75×29.75
323/32CN	32×75×29.75
32307	35×80×32.75
32308/YB2	40×90×35.25
32308	40×90×35.25
32309	45×100×38.2
32310/YA	50×110×42.25
32310	50×110×42.25
32311	55×120×46
32311/YA	55×120×45.5
32311/YB2	55×120×45.5
32312	60×130×48.5
32313	65×140×51
32314	70×150×54
32315	75×160×58
32316	80×170×67.5
32907	35×55×14
32908	40×62×15
32909	45×68×15
32910	50×72×15
32911	55×80×17
92312	60×85×17
32912	60×85×17
32913	65×90×17
32914	70×100×20
32916	80×110×20
32917	85×120×23
32918	90×125×23
32919	90×130×23
32920	100×140×25
32921	105×145×25
32922	110×150×25
32924	120×165×29
32926	130×180×32
32928	140×190×32
32930	150×210×38
32932	160×220×38
32934	170×230×38
32934YA	170×230×38.5
32936	180×250×45
32938	190×260×45
32940	200×280×51
32944	220×300×51
32948	240×320×51
32948/YB2	240×320×51
32952	260×360×63.5
32956	280×380×63.5
32960	300×420×76
32964	320×440×76
32968	340×460×76
32972	360×480×76
32004	20×42×15
320/22	22×44×15
32005	25×47×15
32005YA	25×47×15
320/28	28×52×16
32006	30×55×17
320/32	32×58×17
32007	35×62×18
32008	40×68×19
32009	45×75×20
32010/YB2	50×80×20
32011	55×90×23
32013	65×100×23
32014	70×110×25
32015	75×115×25
32016	80×125×29
32017	85×130×29
32018	90×140×32
32019	100×150×32
32020	100×150×32
32021	105×160×35
32021/YA	105×160×35
32022Z1	110×170×38
32022/DF	110×170×76
32024	120×180×38
32024/YA	120×180×38
32026	130×200×45
32026/Z1	130×200×45
32028	140×210×45
32028/DF	140×210×90
32028L1	140×210×45
32030	150×225×48
32032	160×240×51
32034	170×260×57
32036	180×280×64
32038	190×290×64
32040	200×310×70
32040/YA	200×310×70
32044	220×340×76
32044/YA	220×340×76
32048	240×360×76
32048/YA	240×360×76
32048/HC	240×360×76
32052	260×400×87
32056	280×420×87
32060	300×460×100
32060/HC	300×460×100
32064/YA	320×480×100
32064	320×480×100
33005	25×47×17
33006	30×55×20
33007	35×62×21
33008	40×68×22
33009	45×75×24
33010	50×80×24
33011	55×90×27
33012	60×95×27
33013	65×100×27
33014	70×110×31
33015	75×115×31
33016	80×125×36
33017	85×130×36
33018	90×140×39
33018/DF	90×140×78
33019	95×145×39
33020	100×150×39
33021	105×160×43
33022	110×170×47
33024	120×180×48
33108	40×75×26
33109	45×80×26
33110	50×85×26
33111	55×95×30
33112	60×100×30
33113	65×110×34
33114	70×120×37
33115	75×125×37
33116	80×130×37
33117	85×140×41
33118	90×150×45
33119	95×160×49
33120	100×165×52
33121	105×175×56
33122	110×180×56
33124	120×200×62
30203	17×40×13.25
30204	20×47×15.25
30206	30×62×17.25
302/32	32×65×18.25
30207	35×72×18.25
30207/YB2	35×72×18.25
30208	40×80×19.75
30209	45×85×20.75
30210	50×90×21.75
30211	55×100×22.75
30212	60×110×23.75
32012	60×110×23.75
30213	65×120×24.75
30214	70×125×26.25
30214/T	70×125×26.25
30215/S0	75×130×27.25
30215	75×130×27.25
30216	80×140×28.25
30217	85×150×30.5
30218	90×160×32.5
30219	95×170×34.5
30220	100×180×37
30221	105×190×39
30222	110×200×41
30224	120×215×43.5
30226	130×230×43.75
30228	140×250×45.75
30230	150×270×49
30232	160×290×52
30234	170×310×57
30236	180×320×57
30238	190×340×60
30240	200×400×72
30244	220×400×72
30248	240×440×79
30252	260×480×89
30256	280×500×89
32203	17×40×17.25
32204	20×47×19.25
32205	25×52×19.25
32207	35×72×24.25
32208	40×80×24.75
32318	90×190×67.5
32319	95×200×71.5
32321	105×225×81.5
32322	110×240×84.5
32324	120×260×90.5
32326	130×280×98.75
32328	140×300×107.75
32330	150×320×114
32332	160×340×121
32334	170×360×127
32336	180×380×134
32338	190×400×140
32340	200×420×146
32344	220×460×154
32348	240×500×165
32352	260×540×176
32356	280×580×187
308/800YB2	800×990×57
31856X2	280×350×36
318/850X2	850×1030×90
32880X2	400×500×60
31976X2	380×520×66.5

Warehousing and delivery

Shandong Delitong Bearing Co., Ltd., founded in 2002, is located in the industrial zone of Linqing, Shandong Province. It is a bearing production base integrating design, production and sales. The company has strong technical strength, complete measurement, physical and chemical inspection, and testing methods, strong product research and development capabilities, and technological innovation capabilities. It can design and produce bearings for various industries with 0, 2, 3, 6, 7, 8, 9, 7 types, 3 accuracy levels, and over 4000 specifications for various purposes. The products are widely used in industries such as metallurgy, shipbuilding, petroleum, chemical industry, mining, coal, hydropower, heavy machinery, etc.
