Welcome to Introduction to Shandong Delitong Bearing Co., Ltd

F Series

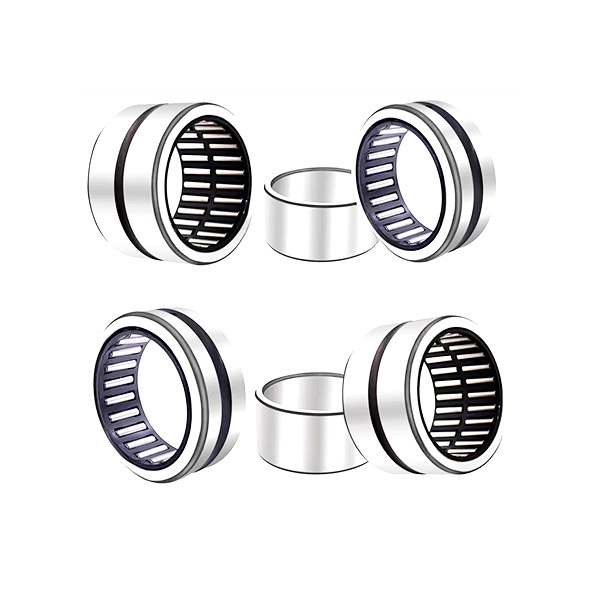

Drawn Cup Needle Roller Bearings are similar to standard roller bearings except for their much smaller diameter-to-length ratio. They are a very popular bearing style due to their small cross-section (distance between ID and OD). In most cases, a hardened shaft or pin acts as the inner race. Also, rollers are kept parallel to the axis of the shaft by controlling the clearance between the rollers.

Category：

Needle roller bearings

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Inquire

F Series

Bearing Number	Dimensions (mm)
F-0607	6×10×7
F-1510	15×21×10
F-4512	45×52×12
F-0608	6×10×8
F-0708	7×11×8
F-0808	8×12×8
F-1512	15×21×12
F-2012	20×26×12
F-2212	22×28×12
F-0509	5×9×9
F-0609	6×10×9
F-1514	15×21×14
F-1614	16×22×14
F-1714	17×23×14
F-2014	20×26×14
F-2516	25×32×16
F-0810	8×12×10
F-1010	10×14×10
F-1516	15×21×16
F-2216	22×28×16
F-1212	12×16×12
F-1718	17×23×18
F-1014	10×14×14
F-2020	20×26×20
F-2020/HV	20×26×20
F-4024	40×47×24
F-6028	60×68×28
FH-0810	8×14×10
FH-0910	9×15×10
FH-1010	10×16×10
FH-1010/HV	10×16×10
FH-1010/S0	10×16×10
FH-0812	8×14×12
FH-0812/YA3	8×14×12
FH-0812/HV	8×14×12
FH-1212	12×18×12
FH-1814	18×26×14
FH-2014	20×28×14
FH-3516	35×45×16
FH-4016	40×50×16
FH-0814	8×14×14
FH-1218	12×18×18
FH-4524	45×55×24
FH-2828	28×38×28
FH-3832	38×48×32
FH-4032	40×50×32
F/7x12x8	7×12×8
F/7.91x12.7x7.92	7.91×12.7×7.92
F/9x15x13	9×15×13
F/9.52x14.29x7.92	9.52×14.29×7.92
F/10x16x9	10×16×9
F/10x16x15	10×16×15
F/10x16x17	10×16×17
F/12x17x12	12×17×12
F/12x17x15	12×17×15
F/12x17x18	12×17×18
F/12.7x17.46x12.7	12.7×17.46×12.7
F/12.7x17.46x15.88	12.7×17.46×15.88
F/12.7x19.05x12.7	12.7×19.05×12.7
F/12.7x19.05x15.88	12.7×19.05×15.88
F/14x20x13	14×20×13
F/15x20x8	15×20×8
F/15x20x8/YA3	15×20×8
F/15x20x12	15×20×12
F/15x20x12/HV	15×20×12
F/15x20x12/YB	15×20×12
F/15x20x16	15×20×16
F/15x20x20	15×20×20
F/17x23x22	17×23×22
F/18x24.08x12	18×24.08×12
F/18x24.08x16	18×24.08×16
F/19x31x25	19×31×25
F/20x26x16	20×26×16
F/20x26x25	20×26×25
F/22x29x20	22×29×20
F/22x29x20/YA	22×29×20
F/22x29x25	22×29×25
F/22x29x25/YA	22×29×25
F/25x32x13	25×32×13
F/25x32x22	25×32×22
F/25x32x25	25×32×25
F/25x32x25/HV	25×32×25
F/25.4x31.75x12.7	25.4×31.75×12.7
F/25.4x31.75x25.4	25.4×31.75×25.4
F/28.58x34.92x25.4	28.58×34.92×25.4
F/30x38x16	30×38×16
F/30x38x24	30×38×24
F/30x38x32	30×38×32
F/30x38.08x20	30×38×25
F/32x40x24	32×40×24
F/32x40x32	32×40×32
F/34.92x41.28x25.4	34.92×41.28×25.4
F/34.92x41.28x31.7	34.92×41.28×31.75
F/35x43x16	35×43×16
F/35x43x20	35×43×20
F/35x43x25	35×43×25
F/35x43x32	35×43×32
F/38.1x47.5x31.75	38.1×47.5×31.75
F/38x48x25	38×48×25
F/38.1x47.62x31.75	38.1×47.62×31.75
F/40x50x32	40×50×32
F/40x50x38	40×50×38
F/41.28x50.8x15.88	41.28×50.8×15.88
F/41.28x50.8x31.75	41.28×50.8×31.75
F/45x55x38	45×55×38
F/45x58.08x20	45×58.08×20
F/50x60x38	50×60×38
F/60x68x40	60×68×40
B-45	6.35×11.112×7.937
B-66	9.525×14.288×9.525
B-86	12.7×17.463×12.7
B-108	15.875×20.638×12.7
B-1012	15.875×20.638×19.05
B-1112	17.463×22.225×19.05
B-128	19.05×25.4×12.7
B-248	38.1×47.62×12.7
MF-0607	6×10×7
MF-1410	14×20×10
MF-2010	20×26×10
MF-1512	15×21×12
MF-2012	20×26×12
MF-2212	22×28×12
MF-0609	6×10×9
MF-1714	17×23×14
MF-2014	20×26×14
MF-2516	25×32×16
MF-2216	22×28×16
MF-1718	17×23×18
MF-2020	20×26×20
MFH-0810	8×14×10
MFH-0910	9×15×10
MFH-1010	10×16×10
MFH-0812	8×14×12
MFH-2828	28×38×28
MFH-4032	40×50×32
MF/7x12x8	7×12×8
MF/9x15x13	9×15×13
MF/10x15x9.3	10×15×9.3
MF/10x16x15	10×16×15
MF/10x16x17	10×16×17
MF/12x17x12	12×17×12
MF/12x17x15	12×17×15
MF/12x17x18	12×17×18
MF/13x19x12	13×19×12
MF/15x20x16	15×20×16
MF/15x20x20	15×20×20
MF/17x23x22	17×23×22
MF/17x24x14	17×24×14
MF/20x26x25	20×26×25
MF/25x32x25	25×32×25
MF/30x38x16	30×38×16
MF/30x38x24	30×38×24
MF/30x38x25	30×38×25
MF/30x38x32	30×38×32
MF/32x40x32	32×40×32
MF/35x43x16	35×43×16
MF/35x43x25	35×43×25
MF/35x43x32	35×43×32
MF/40x50x38	40×50×38
MF/45x55x38	45×55×38
MF/50x60x38	50×60×38

Warehousing and delivery

Shandong Delitong Bearing Co., Ltd., founded in 2002, is located in the industrial zone of Linqing, Shandong Province. It is a bearing production base integrating design, production and sales. The company has strong technical strength, complete measurement, physical and chemical inspection, and testing methods, strong product research and development capabilities, and technological innovation capabilities. It can design and produce bearings for various industries with 0, 2, 3, 6, 7, 8, 9, 7 types, 3 accuracy levels, and over 4000 specifications for various purposes. The products are widely used in industries such as metallurgy, shipbuilding, petroleum, chemical industry, mining, coal, hydropower, heavy machinery, etc.
