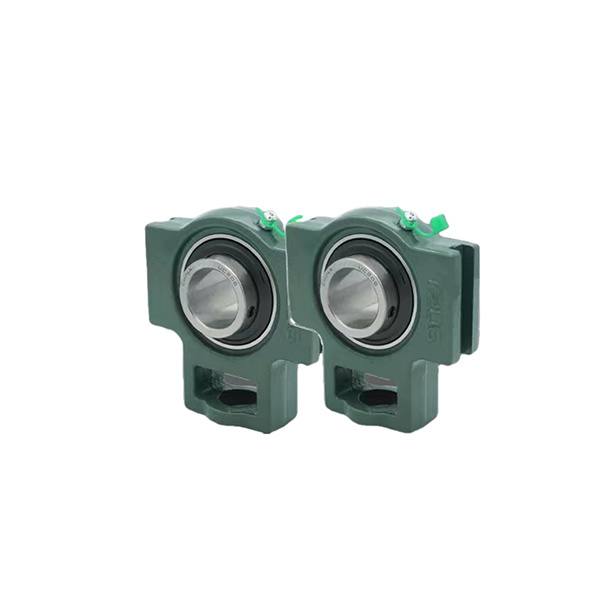

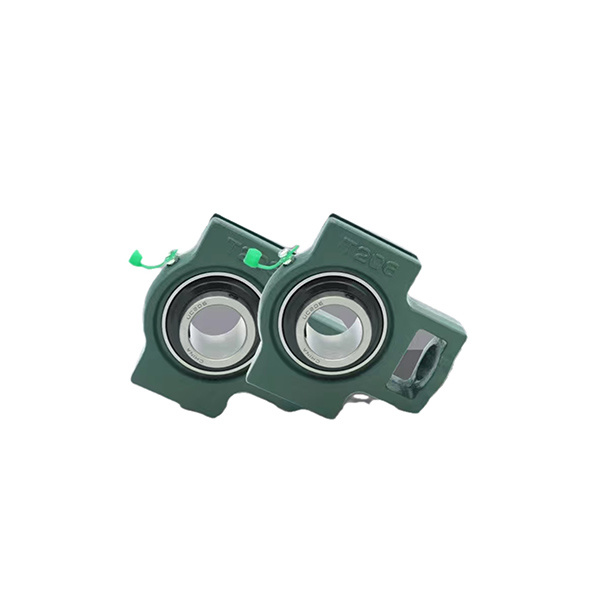

UCT Type

Pillow block bearing, the most commonly used type of mounted units, are housings which have a bearing fitted into them. They are designed to provide shaft support where the mounting surface is parallel to the shaft axis. Typically manufactured from cast iron or cast steel, the pillow block bearing housing has provisions to allow the housing to be bolted down snugly.

Category：

Insert spherical bearing with seat

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Inquire

UCT Type

Pillow block bearing, the most commonly used type of mounted units, are housings which have a bearing fitted into them.
They are designed to provide shaft support where the mounting surface is parallel to the shaft axis.
Typically manufactured from cast iron or cast steel, the pillow block bearing housing has provisions to allow the housing to be bolted down snugly.

Unit No.	d		Dimensions(in) or (mm)															Mass(kg)
Unit No.	(in)	(mm)	O	G	P	Q	S	B	K	E	A	W	J	L	H	Bi	N	Mass(kg)
UCT305		25	16	12	62	36	26	65	12	80	89	122	36	26	76	38	15
UCT305-14	5/8		5/8	15/32	2-7/16	1-13/32	1-1/32	2-9/16	15/32	3-5/32	3-1/2	4-13/16	1-3/32	1-1/32	3	1.4961	0.5906	1.4
UCT306		30	18	14	70	41	28	74	16	90	100	137	41	28	85	43	17
UCT306-18	1-1/8		23/32	9/16	2-3/4	1-5/8	1-7/64	2-29/32	5/8	3-35/64	3-15/16	5-13/32	1-5/8	1-3/32	3-11/32	1.6929	0.0693	1.85
UCT307		35	20	15	75	45	30	80	16	100	111	150	45	32	94	48	19
UCT307-20	1-1/4		25/32	19/32	2-15/16	1-25/32	1-3/16	3-5/32	5/8	3-15/16	4-3/8	5-29/32	1-25/32	1-1/4	3-11/16	1.8897	0.748	2.45
UCT308		40	22	17	83	50	32	89	18	112	124	162	50	34	100	52	19
UCT308-24	1-1/2		7/8	21/32	3-9/32	1-31/32	1-17/64	3-1/2	45/64	4-13/32	4-7/8	6-3/8	1-3/32	1-1/32	3-15/16	2.0472	0.748	3.1 0
UCT309		45	24	18	90	55	34	97	18	125	138	178	55	38	110	57	22
UCT309-26	1-5/8		15/16	23/32	3-17/32	2-5/32	1-11/32	3-13/16	45/64	4-59/64	5-7/16	7	2-5/32	1-1/2	4-11/32	2.2441	0.8661	4.1 0
UCT310		50	27	20	98	61	37	106	20	140	151	191	61	40	117	61	22
UCT310-30	1-7/8		1-1/16	25/32	3-27/32	2-13/32	1-29/64	4-3/16	25/32	5-33/64	5-15/16	7-17/32	2-13/32	1-9/16	4-19/32	2.4015	0.8661	5.25 0
UCT311		55	29	21	105	66	39	115	22	150	163	207	66	44	127	66	25
UCT311-32	2		1-5/32	13/16	4-1/8	2-19/32	1-17/32	4-17/32	55/64	2-29/32	6-13/32	8-5/32	2-19/32	1-2/32	5	2.5934	0.9842	6.41
UCT312		60	31	23	113	71	41	123	22	160	178	220	71	46	135	71	26
UCT312-36	2-1/4		1-7/32	29/32	4-7/16	2-25/32	1-39/64	4-27/32	55/64	6-19/64	7	8-21/32	2-25/32	1-13/16	5-5/16	2.7953	1.023	7.6 0
UCT313		65	32	25	116	70	43	134	26	170	190	238	80	50	146	75	30
UCT313-40	2-1/2		1-1/4	1	4-9/16	2-3/4	1-11/16	5-9/16	1-1/32	6-11/16	7-15/32	9-3/8	3-5/32	1-31/32	5-3/4	2.9528	1.1811	9.220
UCT314		70	36	25	130	85	46	140	26	180	202	252	90	52	155	78	33
UCT314-44	2-3/4		1-13/32	1	5-1/8	3-11/32	1-13/16	5-1/2	1-1/32	7-3/32	7-15/16	9-29/32	3-17/32	2-1/16	6-3/32	3.0709	1.2992	11.40
UCT315		75	36	25	132	85	46	150	26	192	216	262	90	55	160	82	32
UCT315-48	3-1/8		1-13/32	1	5-3/16	3-11/32	1-13/16	5-29/32	1-1/32	7-9/16	8-1/2	10-5/16	3-17/32	2-5/32	6-5/16	3.2283	1.2598	13
UCT316		80	42	28	150	98	53	160	30	204	230	282	102	60	174	86	34
UCT316-50	3		1-21/32	1-3/32	5-29/32	3-27/32	2-3/32	6-5/16	1-3/16	8-1/32	9-1/16	11-3/32	4-1/32	2-3/8	6-27/32	3.3858	1.3386	15.16
UCT317		85	42	30	152	98	53	170	32	214	240	298	102	64	183	96	40
UCT317-52	3-1/4		1-21/32	1-3/16	5-31/32	3-27/32	2-3/32	6-11/16	1-17/64	8-27/64	9-7/16	11-23/32	4-11/32	2-17/32	7-7/32	3.7795	1.5748	19.34
UCT318		90	46	30	160	106	57	175	32	228	255	312	110	66	192	96	40
UCT318-56	3-1/2		1-13/16	1-3/16	6-5/16	4-3/16	2-1/4	6-7/8	1-17/64	8-31/32	10-1/32	12-9/32	4-11/32	2-19/32	7-9/16	3.7796	1.5748	21.250
UCT319		95	46	31	165	106	57	180	35	240	270	322	110	72	197	103	41
UCT319-60	3-3/4		1-13/16	1-7/32	6-1/2	4-3/16	2-1/4	7-3/32	1-3/8	9-29/64	10-5/8	12-11/16	4-11/32	2-27/32	7-3/4	4.0551	1.6142	24.380
UCT320		100	48	32	175	115	59	20	35	260	290	345	120	75	210	108	42
UCT320-64	4		1-7/8	1-1/4	6-7/8	4-17/32	2-21/64	1-7/8	1-3/8	10-15/64	11-13/32	13-19/32	4-23/30	2-15/16	8-9/32	4.2519	1.6535	30.8 0
