CF Series

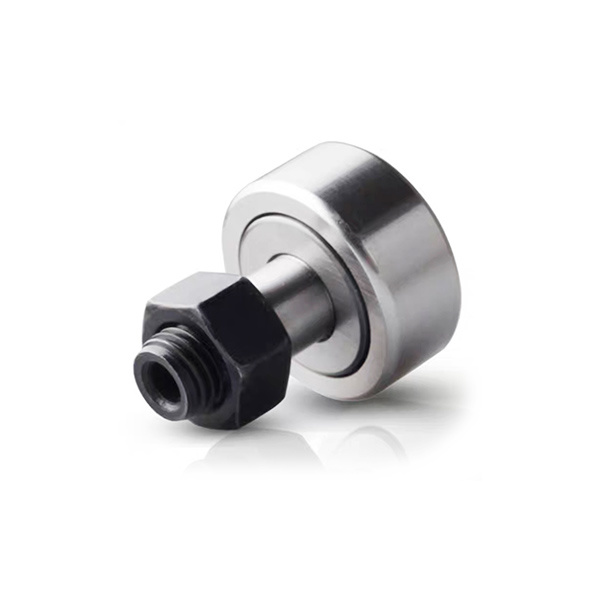

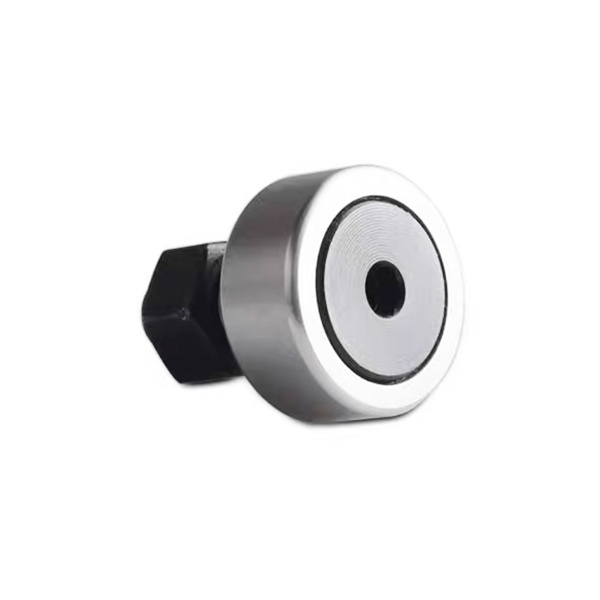

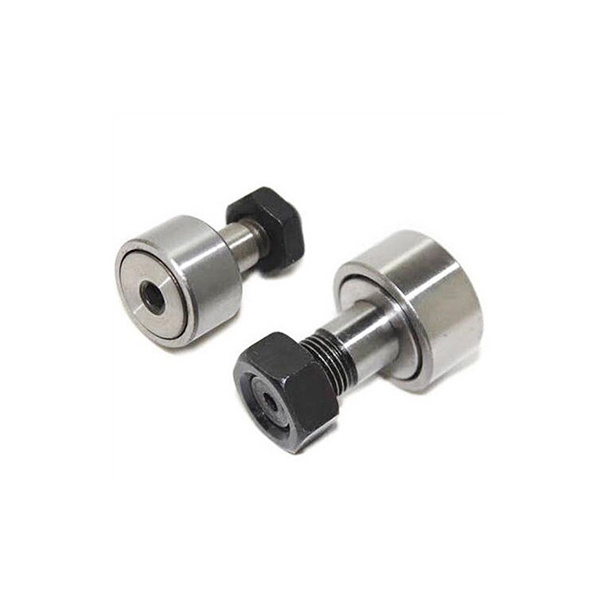

Cam Follower - CF Series, this model is an economical Cam Follow having a driver groove or hexagon socket in the stud head. The all-stainless steel type is optimal for clean room applications since it does not develop rust from external atmosphere and generates little dust.

Category：

Needle roller bearings

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Inquire

CF Series

Shield type		Sealed type		Dimensions (mm)				Mass
With crowned outer ring	With cylindrical outer ring	With crowned outer ring	With cylindrical outer ring	D	C	d1	G	g
CF 3 BR	CF 3 B	CF 3 BUUR	CF 3 BUU	10	7	3	M 3*0.5	4.3
CF 4 BR	CF 4 B	CF 4 BUUR	CF 4 BUU	12	8	4	M 4*0.7	7.4
CF 5 BR	CF 5 B	CF 5 BUUR	CF 5 BUU	13	9	5	M 5*0.8	10.3
CF 6 BR	CF 6 B	CF 6 BUUR	CF 6 BUU	16	11	6	M 6*1	18.5
CF 8 BR	CF 8 B	CF 8 BUUR	CF 8 BUU	19	11	8	M 8*1.25	28.5
CF 10 BR	CF 10 B	CF 10 BUUR	CF 10 BUU	22	12	10	M10*1.25	45
CF 10-1 BR	CF 10-1 B	CF 10 BUUR	CF 10-1 BUU	26	12	10	M10*1.25	60
CF 12 BR	CF 12 B	CF 12 BUUR	CF 12 BUU	30	14	12	M12*1.5	95
CF 12-1 BR	CF 12-1 B	CF 12-1 BUUR	CF 12-1 BUU	32	14	12	M12*1.5	105
CF 16 BR	CF 16 B	CF 16 BUUR	CF 16 BUU	35	18	16	M16*1.5	170
CF 18 BR	CF 18 B	CF 18 BUUR	CF 18 BUU	40	20	18	M18*1.5	250
CF 20 BR	CF 20 B	CF 20 BUUR	CF 20 BUU	52	24	20	M20*1.5	460
CF 20-1 BR	CF 20-1 B	CF 20-1 BUUR	CF 20-1 BUU	47	24	20	M20*1.5	385
CF 24 BR	CF 24 B	CF 24 BUUR	CF 24 BUU	62	29	24	M24*1.5	815
CF 24-1 BR	CF 24-1 B	CF 24-1 BUUR	CF 24-1 BUU	72	29	24	M24*1.5	1140
CF 30 BR	CF 30 B	CF 30 BUUR	CF 30 BUU	80	35	30	M30*1.5	1870
CF 30-1 BR	CF 30-1 B	CF 30-1 BUUR	CF 30-1 BUU	85	35	30	M30*1.5	2030
CF 30-2 BR	CF 30-2 B	CF 30-2 BUUR	CF 30-2 BUU	90	35	30	M30*1.5	2220
