LME.UU

LM/LME linear bushing has a steel outer ring with grooves for a circlip and a polyamide ball retainer with 3 to 6 ball circuits depending on size. On request linear ball bushing are also available in stainless steel. All linear bearings with the designation UU have seals from both sides.

Category：

Linear motion bearings

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Inquire

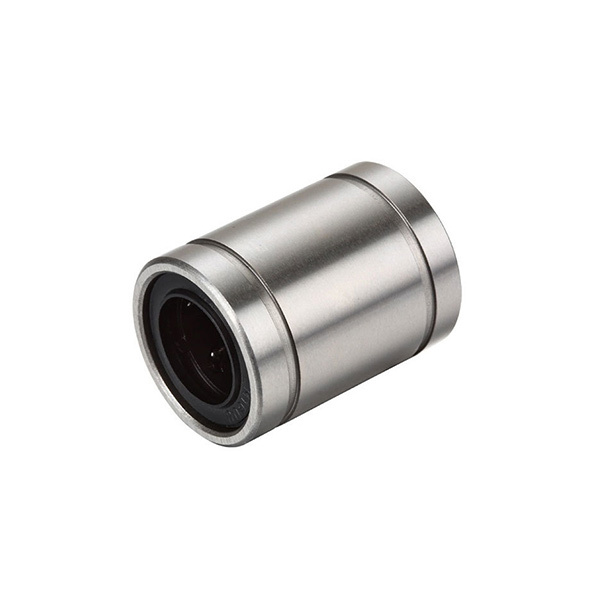

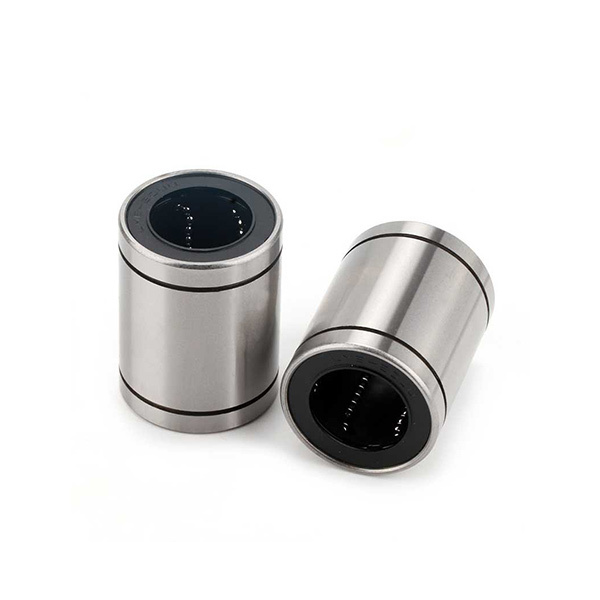

LME.UU

This type is metric dimension series generally used in Europe.
LM/LME linear bushing has a steel outer ring with grooves for a circlip and a polyamide ball retainer with 3 to 6 ball circuits depending on size.
On request linear ball bushing are also available in stainless steel. All linear bearings with the designation UU have seals from both sides.

Bearing Model	d(mm)	D(mm	L(mm)
LME8UU	8	16	25
LME12UU	12	22	32
LME16UU	16	26	36
LME20UU	20	32	45
LME25UU	25	40	58
LME30UU	30	47	68
LME40UU	40	62	80
LME50UU	50	80	100
LME60UU	60	90	125
LME80UU	80	120	168

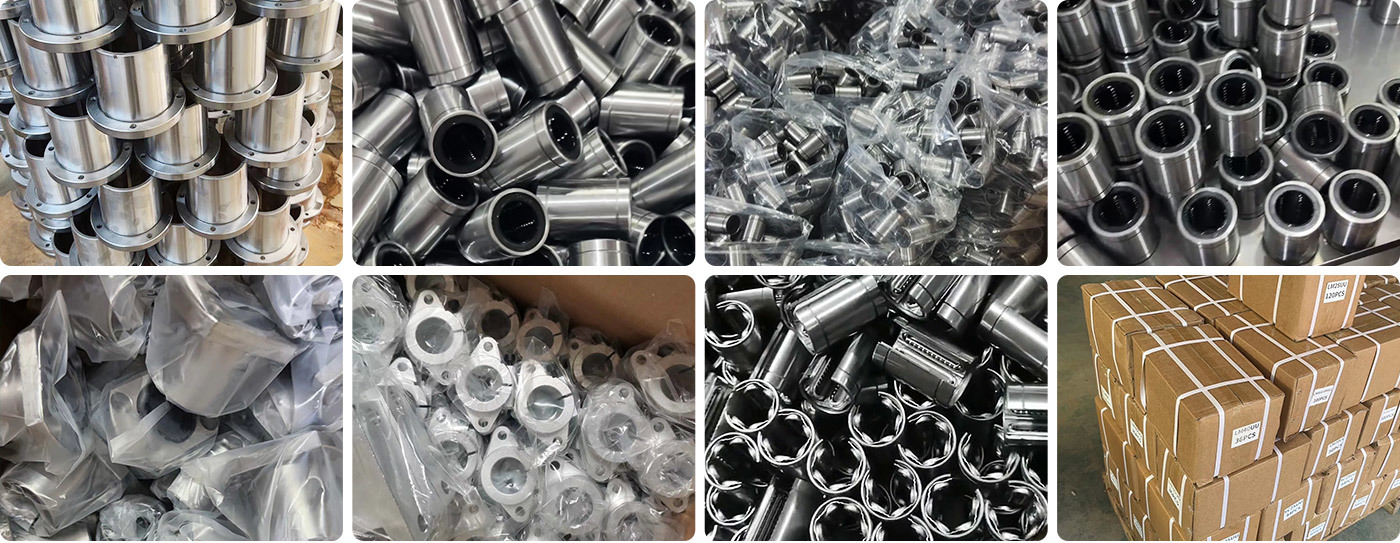

Warehousing and delivery

Shandong Delitong Bearing Co., Ltd., founded in 2002, is located in the industrial zone of Linqing, Shandong Province. It is a bearing production base integrating design, production and sales. The company has strong technical strength, complete measurement, physical and chemical inspection, and testing methods, strong product research and development capabilities, and technological innovation capabilities. It can design and produce bearings for various industries with 0, 2, 3, 6, 7, 8, 9, 7 types, 3 accuracy levels, and over 4000 specifications for various purposes. The products are widely used in industries such as metallurgy, shipbuilding, petroleum, chemical industry, mining, coal, hydropower, heavy machinery, etc.
