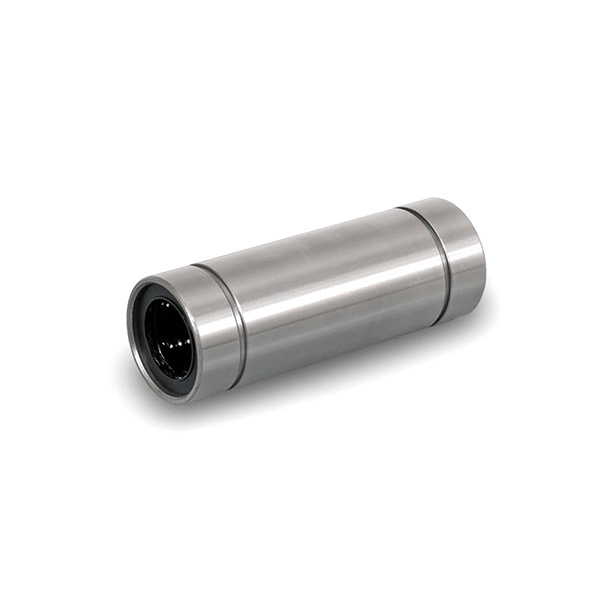

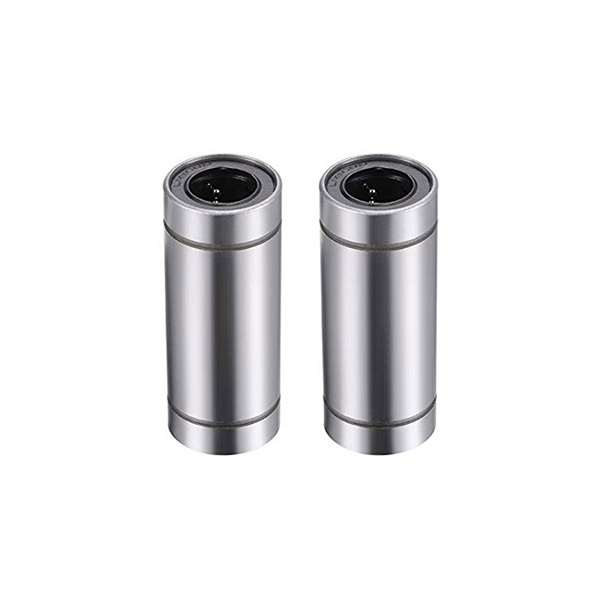

LME.LUU
The ball retainer is mounted inside the extended bushing together with the steel balls, and sealed with a retaining ring (seal) from one side or both sides of the bushing to form a complete LME.LUU long linear bearing.
The size of LME.LUU long linear motion bearing is metric version, making the product extensively used in the European countries. This type of standard linear bushings LME.LUU provide low friction on high speed movement, and the shaft diameter is from 8mm to 60mm.
Bearing Model |
d(mm) |
D(mm) |
L(mm) |
LME8LUU |
8 |
16 |
45 |
LME12LUU |
12 |
22 |
57 |
LME16LUU |
16 |
26 |
70 |
LME20LUU |
20 |
32 |
80 |
LME25LUU |
25 |
40 |
112 |
LME30LUU |
30 |
47 |
123 |
LME40LUU |
40 |
62 |
154 |
LME50LUU |
50 |
75 |
192 |
LME60LUU |
60 |
90 |
211 |
Warehousing and delivery
Shandong Delitong Bearing Co., Ltd., founded in 2002, is located in the industrial zone of Linqing, Shandong Province. It is a bearing production base integrating design, production and sales. The company has strong technical strength, complete measurement, physical and chemical inspection, and testing methods, strong product research and development capabilities, and technological innovation capabilities. It can design and produce bearings for various industries with 0, 2, 3, 6, 7, 8, 9, 7 types, 3 accuracy levels, and over 4000 specifications for various purposes. The products are widely used in industries such as metallurgy, shipbuilding, petroleum, chemical industry, mining, coal, hydropower, heavy machinery, etc.
