LM.UU

This type is a standard metric dimension series widely used in Asia and other countries. A special synthetic rubber seal is incorporated into both ends or either end of the linear bush, thus to prevent foreign matter from entering the linear bush and minimize leaking of the grease.

Category：

Linear motion bearings

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Inquire

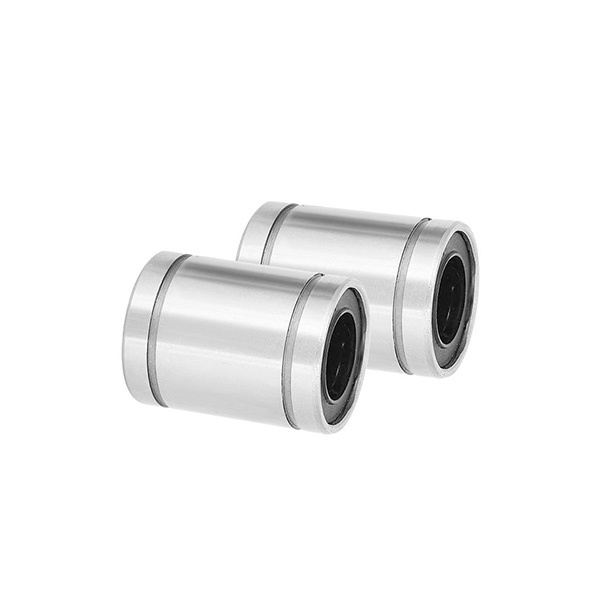

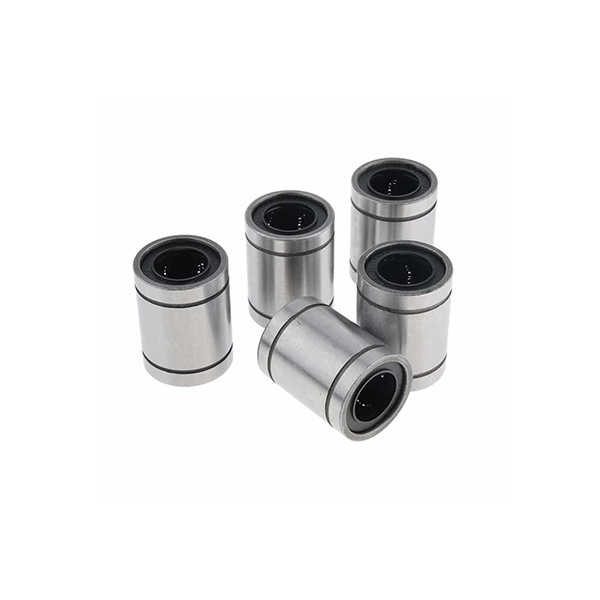

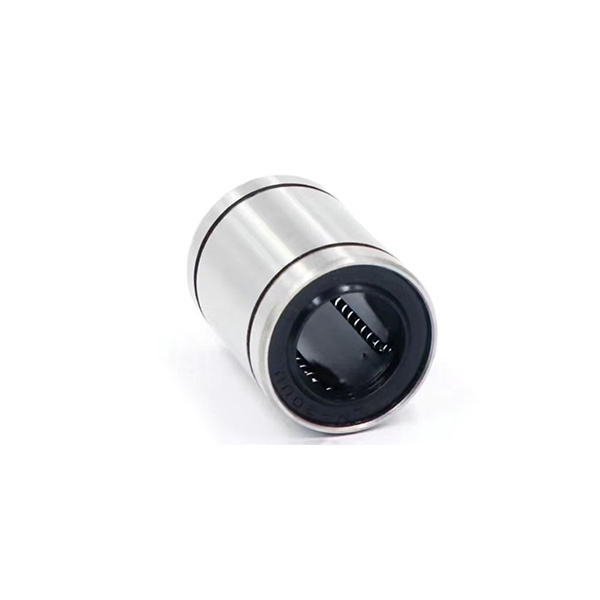

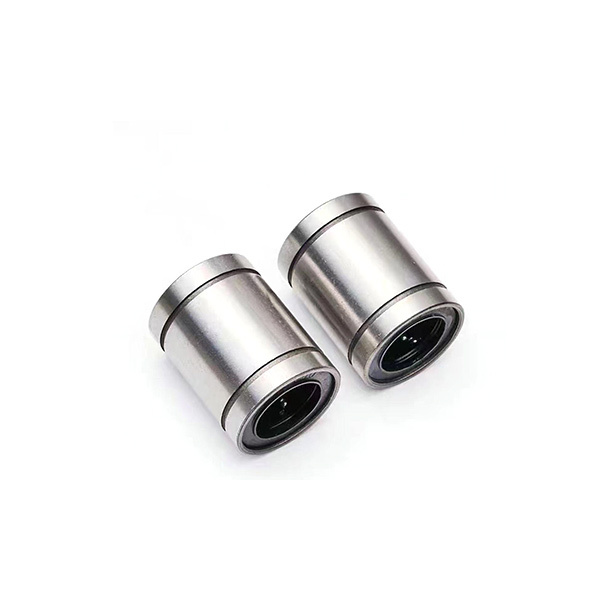

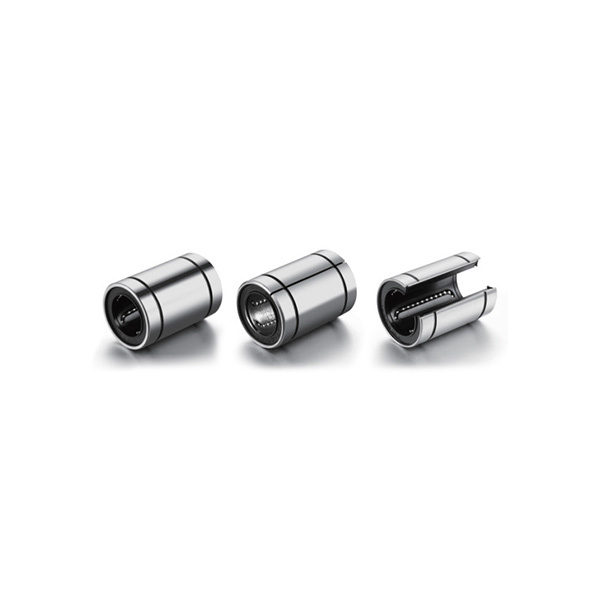

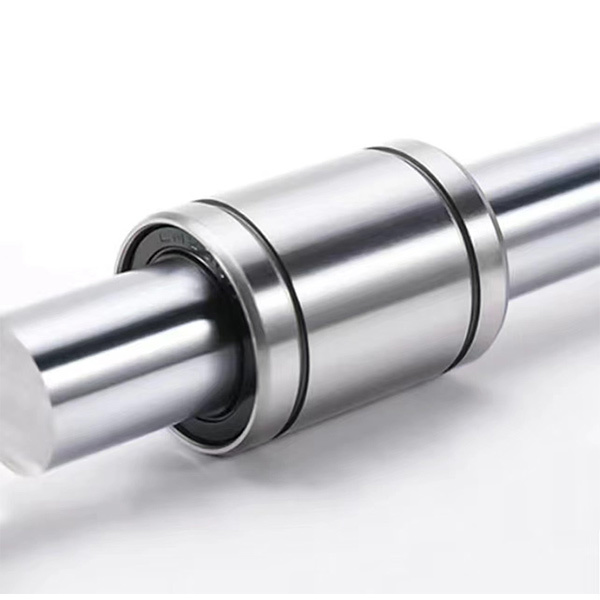

LM.UU

LM.UU (Standard Type)
This type is a standard metric dimension series widely used in Asia and other countries.
A special synthetic rubber seal is incorporated into both ends or either end of the linear bush, thus to prevent foreign matter from entering the linear bush and minimize leaking of the grease.

Model Number		Dimensions(mm)			Basic load rating(N)
Model Number		d	D	L	Dynamic C	Static C0
LM3	LM3UU	3	7	10	88.2	108
LM4	LM4UU	4	8	12	88.2	127
LM5	LM5UU	5	10	15	167	206
LM6	LM6UU	6	12	19	206	265
LM8S	LM8SUU	8	15	17	176	225
LM8	LM8UU	8	15	24	265	402
LM10	LM10UU	10	19	29	373	549
LM12	LM12UU	12	21	30	412	598
LM16	LM16UU	16	28	37	775	1180
LM20	LM20UU	20	32	42	863	1370
LM25	LM25UU	25	40	59	980	1570
LM30	LM30UU	30	45	64	1570	2750
LM35	LM35UU	35	52	70	1670	3140
LM40	LM40UU	40	60	80	2160	4020
LM50	LM50UU	50	80	100	3820	7940
LM60	LM60UU	60	90	110	4710	10000

Warehousing and delivery

Shandong Delitong Bearing Co., Ltd., founded in 2002, is located in the industrial zone of Linqing, Shandong Province. It is a bearing production base integrating design, production and sales. The company has strong technical strength, complete measurement, physical and chemical inspection, and testing methods, strong product research and development capabilities, and technological innovation capabilities. It can design and produce bearings for various industries with 0, 2, 3, 6, 7, 8, 9, 7 types, 3 accuracy levels, and over 4000 specifications for various purposes. The products are widely used in industries such as metallurgy, shipbuilding, petroleum, chemical industry, mining, coal, hydropower, heavy machinery, etc.
