Four Row

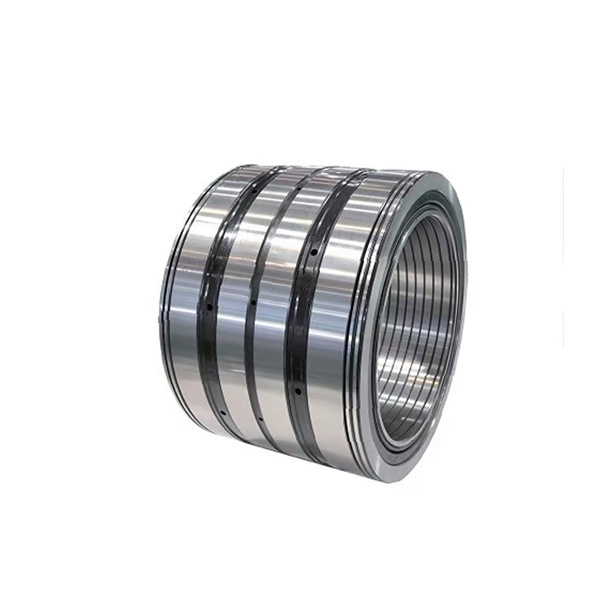

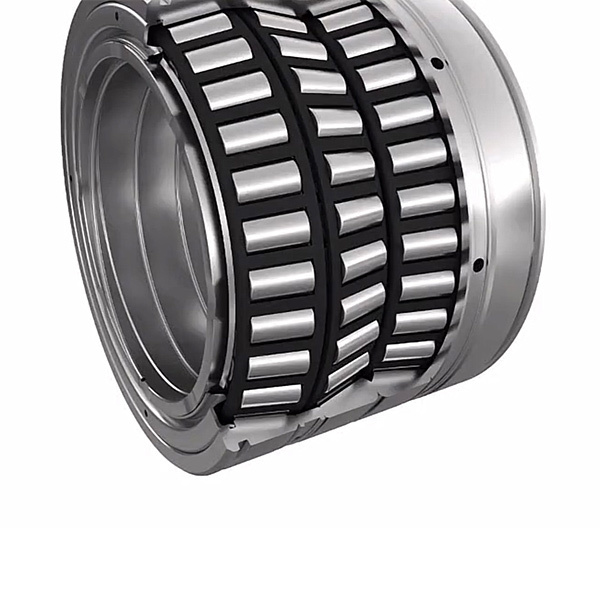

Four-row tapered roller bearings have spacers for adjusting the clearance between the inner and outer rings. The performance is basically the same as that of double-row tapered roller bearings, and the bearing capacity is large. They are used almost exclusively in work roll applications such as rolling mills.

Category：

Tapered roller bearings

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Inquire

Four Row

Bearing Number	Dimensions(mm)
381992/HC	460×620×310
381992	460×620×310
381992/C2	460×620×310
381992/P6	460×620×310
3819/540	540×690×400
3819/560	560×750×368
3819/560/HCC2YA3	560×750×368
3819/560/C2	560×750×368
3819/600J/HC	600×800×380
3819/600	600×800×380
3819/600HCC2YA3	600×800×380
3819/600/C2	600×800×380
3819/630/HC	630×850×418
3819/630	630×850×418
3819/630/C2	630×850×418
3819/670	670×900×412
3819/670/HC	670×900×412
3819/670/C2	670×900×412
382930	150×210×165
382952	260×360×265
382952/C2	260×360×265
382960	300×420×300
382960/C2	300×420×300
382968	340×460×310
382968/C2	340×460×310
382968X2/C9	300×420×310
382972X2	360×480×375
381036	180×280×180
381068	340×520×325
381068/C2	340×520×325
381072	360×540×325
381072/C9	360×540×325
381072/C2	360×540×325
371076	380×560×325
381076/C2	380×560×325
381080	400×600×356
384080/HC	400×600×356
381080/C2	400×600×356
381080/C3	400×600×356
381084	420×620×356
381084/C2	420×620×356
381088	440×650×376
381088/C2	440×650×376
381092	460×680×410
391092/C2	460×680×410
381096	480×700×200
381096/HC	480×700×420
381096/C9	480×700×420
381096/C2	480×700×420
3810/500	500×720×420
3810/500C2	500×720×420
3810/530	530×780×450
3810/530C2	530×780×450
3810/560	560×820×465
3810/600/HC	600×870×480
3810/600	600×870×480
3810/600/C2	600×870×480
3810/630/HC	630×920×515
3810/630	630×920×515
3810/630/C2	630×920×515
3810/670	670×980×540
3810/710	710×1030×555
3810/710/C2	710×1030×555
3810/750	750×1090×605
3810/750/C2	750×1090×605
382028	140×210×185
382024	170×260×230
382034/S0	170×260×230
382034/C2	170×260×230
382040	200×310×275
382044	220×340×305
382044/P52	220×340×305
382044/C2	220×340×305
382048	240×360×310
382052/P62	260×400×345
382052/C2	260×400×345
382060	300×460×390
382064	320×480×380
3820/950/C2	950×1360×880
3820/1060/C2	1060×1500×1000
382064/P42	320×480×380
381156	280×460×324
381156/C9	280×460×324
381156/C2	280×460×324
381160	300×500×370
381160/C9	300×500×370
381160/C2	300×500×370
381164	320×540×406
381168	340×580×204.5
381168/C2	340×580×425
381168/C3S0	340×580×425
381172	360×600×420
381172/HC	360×600×420
381176	380×620×420
381176/C9	380×620×420
381176/C2	380×620×420
381180	400×650×456
381184	420×700×480
381184/C2	420×700×480
381188	440×720×480
381192	460×760×520
381196	480×790×530
3811/500	500×830×570
3811/530	530×870×590
3811/530/C2	530×870×590
3811/560	560×920×300
3811/560/C2	560×920×620
3811/600/HC	600×980×650
3811/600	600×980×650
3811/600/C2	600×980×650
3811/630	630×1030×670
3811/630/C2	630×1030×670
3811/670	670×1090×710
3811/710	710×1150×362
3811/710/C2	710×1150×362
3811/750/HC	750×1220×840
3811/750	750×1220×840
3811/750/C9	750×1220×840
3811/750/YA	750×1220×840
3811/750/C2	750×1220×840
3811/750/C2YA	750×1220×840
3811/750/C2YA1	750×1220×840
3811/850	850×1360×900
381992X3/YA	460×610×360
3819/600X2	600×800×365
381030X2	450×250×136
381036X2	180×280×180
381040X2	200×310×200
381050X2/YA	250×460×270
381050X2	250×460×270
381056X2	280×420×250
381088X2/YA	440×650×353
381088X2/YB2	440×650×355
381088X2E/YB2	440×650×355
381088X2/HC	440×650×355
381088X2/C9YB2	440×650×355
381088X2/C2YB2	440×650×355
381052X2	260×400×225
381052X2/C2	260×400×225
381052X2/C3	260×400×225
382052X2	260×400×255
382052X2/C9	260×400×255
382052X2/C2	260×400×255
382052X2/C3	260×400×255
382052X2/C4	260×400×255
382052X2/C5	260×400×255
382056X2	280×420×345
382064X2/YB2	320×480×380
382064X2/P5	320×480×380
382064X2/P52	320×480×380
382064X2/C2YB2	320×480×380
382064X2/C2	320×480×380
381152X2	260×440×300
381152X2/C9	260×440×300
381160X2	300×500×350
381160X2/HC	300×500×350
381160X2/C9	300×500×350
3811/750X2/HC	750×1220×840
3811/560X2/C2	560×920×620
3811/600X2	600×980×650
381176X2	380×620×388
380622	110×160×115
D77927	133.35×196.85×193.675
D77928	139.7×200.025×60.338
380640	200×282×206
380641	205×320×205
380641/C2	205×320×205
380649/C9	245×380×254
380650	250×385×255
380664	320×460×338
380664/YB2	320×460×380
380670	350×590×420
380670/HC	350×590×420
380670/C2	350×590×420
380670/C3	350×590×420
380676	380×550×350
380676/C2	380×550×350
380679	395×545×288.7
380679/YA	395×545×288.7
380679/HCC9	395×545×288.7
380679/C9	395×545×288.7
380679/C2	395×545×288.7
380680/HC	400×540×280
380680	400×700×480
380684	420×760×500
380684/C2	420×760×500
380688	440×620×454
380688/HC	440×620×454
380688/C9	440×620×454
380688/C2	440×620×454
380692/C9	460×650×474
380692/C2	460×650×474
380692/YB2	460×730×440
380692	460×730×440
380692/C9YB2	460×730×440
380692/C2YB2	460×730×440
3806/488.95/YA3	488.95×622×365.125
3806/488.95/YA3/P5	488.95×622×365.125
3806/530	530×880×544
3806/530/C2	530×880×544
3806/530/C3	530×880×544
3806/600	600×980×650
3806/650	640×1030×560
3806/650/YA	640×1030×560
3806/650/YA5	640×1030×560
3806/650/C9	640×1030×560
3806/650/C2	640×1030×560
3806/650/HCC9	640×1030×560
3806/660	660×1070×650
3806/660/C2	660×1070×650
779/710	710×900×410
E779/710	710×900×410
3806/750	750×1130×690
3806/750/C2	750×1130×690

Warehousing and delivery

Shandong Delitong Bearing Co., Ltd., founded in 2002, is located in the industrial zone of Linqing, Shandong Province. It is a bearing production base integrating design, production and sales. The company has strong technical strength, complete measurement, physical and chemical inspection, and testing methods, strong product research and development capabilities, and technological innovation capabilities. It can design and produce bearings for various industries with 0, 2, 3, 6, 7, 8, 9, 7 types, 3 accuracy levels, and over 4000 specifications for various purposes. The products are widely used in industries such as metallurgy, shipbuilding, petroleum, chemical industry, mining, coal, hydropower, heavy machinery, etc.
