54000U Series

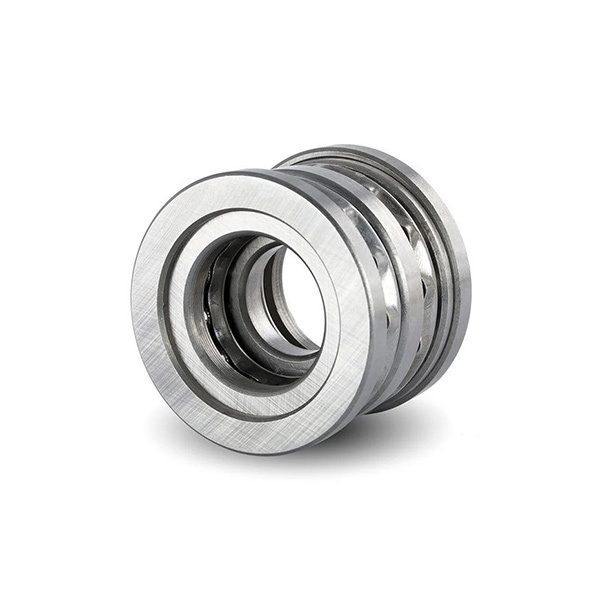

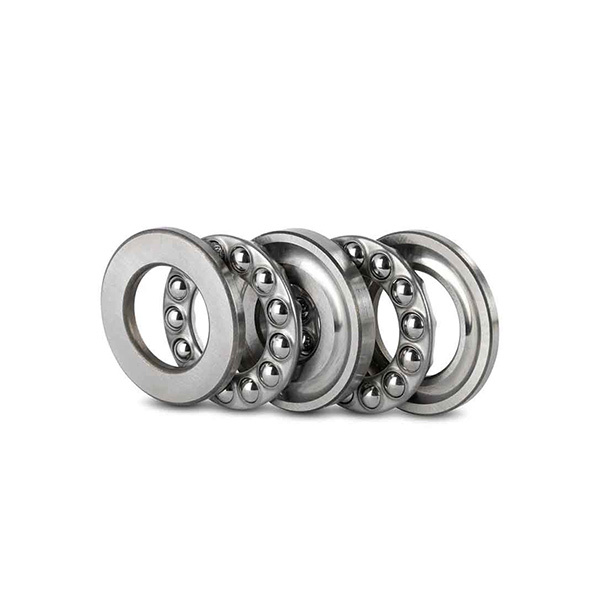

Double direction thrust ball bearings consist of one shaft washer, two housing washers and two ball and cage thrust assemblies. The bearings are separable so that mounting is simple. The various parts can be mounted separately. The housing washers and ball and cage thrust assemblies are identical to those of the single direction bearings. Double direction thrust ball bearings can accommodate axial loads acting in both directions and can thus serve to axially locate a shaft in both directions. They must not be subjected to radial load.

Category：

Thrust ball bearings

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Inquire

54000U Series

Bearing Number	d	D	B	Cr	Cor
Bearing Number	(mm)	(mm)	(mm)	(kN)	(kN)
54202U	15	35	28	16.6	24.8
54204U	20	42	32	22.3	37.7
54205U	25	50	36	27.7	50.4
54206U	30	55	37	28.1	54.6
54207U	35	65	42	40.7	83.8
54208U	40	72	44	46.9	98.3
54209U	45	78	45	47.7	105
54210U	50	82	47	48.5	111
54211U	55	95	55	69.4	159
54212U	60	100	56	73.6	179
54213U	65	105	57	74.8	189
54214U	70	110	57	73.6	189
54215U	75	115	57	77.4	209
54216U	80	120	58	78.5	218
54217U	85	130	67	92.3	251
54218U	90	140	76	117	326
54220U	100	155	81	147	410
54222U	110	165	81	148	431
54224U	120	175	82	154	472
54226U	130	195	96	203	622
54228U	140	210	99	215	669
54230U	150	225	109	244	768
54232U	160	235	110	247	803
54234U	170	250	117	269	874
54236U	180	260	118	294	986
54238U	190	280	131	298	1010
54240U	200	290	133	314	1110
54244U	220	310	134	342	1310
54305U	25	55	42	35.7	61.4
54306U	30	62	46	42.8	78.7
54308U	40	82	59	69.3	135
54309U	45	90	62	80	163
54310U	50	100	70	91.6	186
54311U	55	110	78	119	246
54312U	60	115	78	124	267
54313U	65	120	79	128	287
54314U	70	130	88	148	339
54315U	75	140	95	171	396
54316U	80	145	95	176	424
54317U	85	155	105	206	489
54318U	90	160	106	213	524
54322U	110	195	128	280	754
54405U	25	62	55	55.6	89.4
54406U	30	75	62	-	-
54407U	35	85	69	87.1	155
54408U	40	95	77	113	205
54409U	45	105	86	130	242
54410U	50	115	92	148	283
54411U	55	125	101	178	359
54412U	60	135	107	201	397
54413U	65	145	119	232	493
54414U	70	155	125	250	553
54415U	75	165	135	252	560
54416U	80	175	140	270	621
54417U	85	185	150	307	753
54418U	90	195	157	327	826
54420U	100	220	176	368	983
54307U	35	68	52	55.5	105
54320U	100	170	115	236	596
54324U	120	220	143	325	931
54324UM	120	220	143	—	—
54324MU	100	210	131.2	-	-
