54000 Series

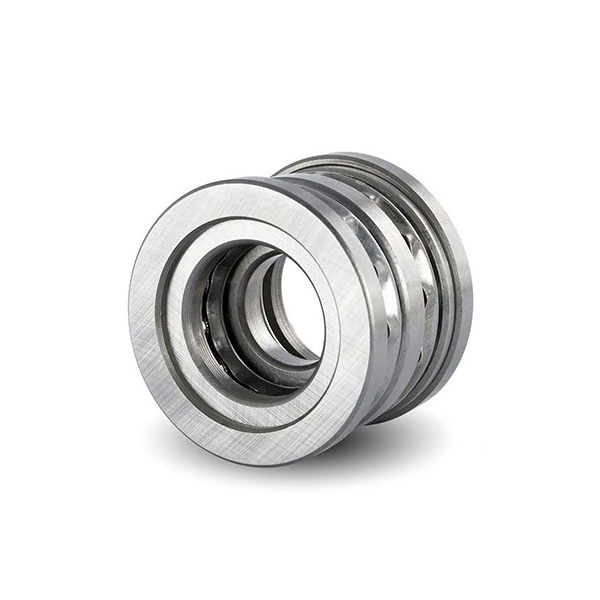

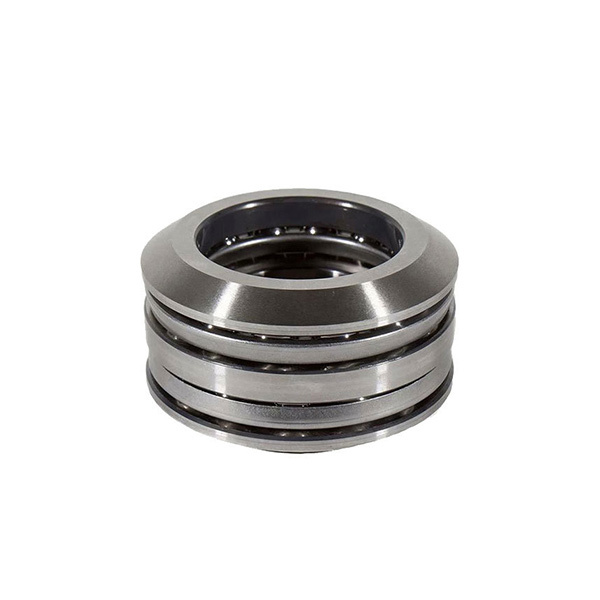

Double direction thrust ball bearings include a shaft washer, two seat washers and two steel ball-cage assemblies. The bearing is a separate type, and each part can be installed independently. Double direction bearings and single direction bearings use the same shaft washer, seat washer and steel ball-cage assembly.

Category：

Thrust ball bearings

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Inquire

54000 Series

Bearing Number	d	D	B	Cr	Cor	Mass
Bearing Number	(mm)	(mm)	(mm)	(kN)	(kN)	(kg)
54202	15	32	24.6	16.6	24.8	-
54204	20	40	27.4	22.3	37.7	-
54205	25	47	31.4	27.7	50.4	-
54206	30	52	32.6	28.1	54.3	0.269
54207	35	62	37.8	40.7	83.8	0.749
54208	40	68	38.6	55.5	105	0.513
54209	45	73	39.6	47.7	105	0.537
54210	50	78	42	48.5	111	1.25
54211	55	90	49.6	69.4	159	2.03
54212	60	95	50	73.6	179	2.24
54213	65	100	50.4	74.8	189	-
54214	70	105	50.6	73.6	189	-
54215	75	110	49.6	77.4	209	1.89
54216	80	115	51	78.5	218	1.54
54217	85	125	59.2	92.3	251	2.25
54218	90	135	69	117	326	3.11
54220	100	150	72.8	147	410	7.88
54222	110	160	71.4	148	431	-
54224	120	170	71.6	154	472	-
54226	130	190	85.8	203	622	-
54228	140	200	86.2	215	669	-
54230	150	215	95.6	244	768	-
54232	160	225	97.4	247	803	-
54234	170	240	104.4	269	874	-
54236	180	250	102.4	294	986	-
54238	190	270	116.4	298	1010	-
54240	200	280	115.6	314	1110	-
54244	220	300	115.2	342	1310	-
54305	25	52	37.6	35.7	61.4	0.303
54306	30	60	41.3	42.8	78.7	0.771
54307	35	68	47.2	46.9	98.3	1.11
54308	40	78	54.1	69.3	135	-
54309	45	85	56.3	80	163	2.15
54310	50	95	64.7	91.6	186	1.84
54311	55	105	72.6	119	246	2.53
54312	60	110	70.7	124	267	2.6
54313	65	115	71.9	128	287	6.32
54314	70	125	80.4	148	339	-
54315	75	135	87.2	171	396	5.92
54316	80	140	86.2	176	424	4.93
54317	85	150	95.2	206	489	6.27
54318	90	155	97.2	213	524	6.74
54322	110	190	118.4	280	754	-
54324	120	210	131.2	325	931	-
54405	25	60	49.7	55.6	89.4	0.221
54406	30	70	56.2	72.8	126	-
54407	35	80	63.1	87.1	155	-
54408	40	90	69.5	113	205	-
54409	45	100	78.9	130	242	-
54410	50	110	83.2	148	283	-
54411	55	120	92	178	359	-
54412	60	130	99	201	397	-
54413	65	140	109.4	232	493	-
54414	70	150	114.1	250	553	1.89
54415	75	160	123	252	560	-
54416	80	170	128.4	270	621	-
54417	85	180	138	307	753	-
54418	90	190	143.5	-	-	-
54420	100	210	160	368	983	-
54320	100	170	105.4	236	596	8.87

Warehousing and delivery

Shandong Delitong Bearing Co., Ltd., founded in 2002, is located in the industrial zone of Linqing, Shandong Province. It is a bearing production base integrating design, production and sales. The company has strong technical strength, complete measurement, physical and chemical inspection, and testing methods, strong product research and development capabilities, and technological innovation capabilities. It can design and produce bearings for various industries with 0, 2, 3, 6, 7, 8, 9, 7 types, 3 accuracy levels, and over 4000 specifications for various purposes. The products are widely used in industries such as metallurgy, shipbuilding, petroleum, chemical industry, mining, coal, hydropower, heavy machinery, etc.
