53000U Series
53000U Series
53000U Series
53000U Series

53000U Series

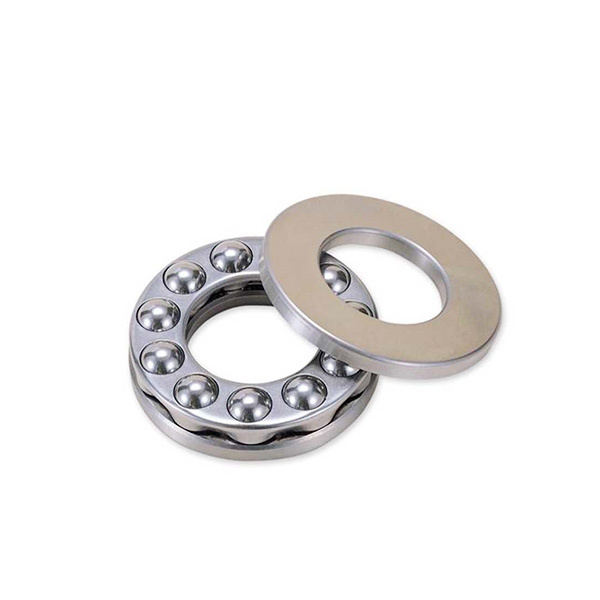

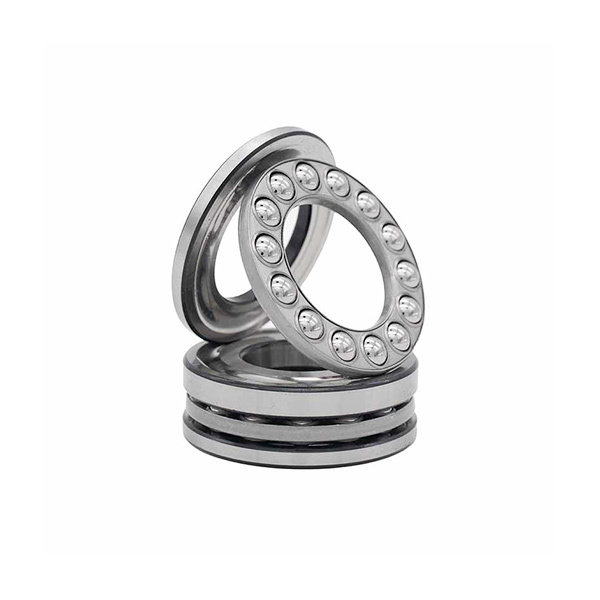

53000 U-Bearings are bearings with self-aligning seat washers that can be used with self-aligning seat washers to compensate for angular misalignment between the support surface in the housing and the shaft. Depending on the bearing series, spherical seat washers have the basic designation U 2, U 3 or U 4, plus two digits indicating the size (eg spherical seat washer U 320 for bearing 53320).

Category：

Thrust ball bearings

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Related
Inquire

53000U Series

53000 U-Bearings are bearings with self-aligning seat washers that can be used with self-aligning seat washers to compensate for angular misalignment between the support surface in the housing and the shaft. Depending on the bearing series, spherical seat washers have the basic designation U 2, U 3 or U 4, plus two digits indicating the size (eg spherical seat washer U 320 for bearing 53320).



Bearing Number

Weight

Dimensions(mm)

(kg)

d x D x T

53200U

0.045

10*28*13

53201U

0.05

12*30*13

53202U

0.063

15*35*15

53203U

0.071

17*38*15

53204U

0.1

20*42*17

53205U

0.15

25*50*19

53206U

0.18

30*55*20

53207U

0.29

35*65*22

53208U

0.35

40*72*23

53209U

0.4

45*78*24

53210U

0.51

50*82*26

53211U

0.75

55*95*30

53212U

0.82

60*100*31

53213U

0.9

65*105*32

53214U

0.97

70*110*32

53215U

1.15

75*115*32

53216U

1.18

80*120*33

53217U

1.5

85*130*37

53218U

2.31

90*140*42

53220U

2.7

100*155*45

53305U

0.25

25*55*22

53306U

0.33

30*62*25

53307U

0.46

35*72*28

53308U

0.67

40*82*31

53309U

0.83

45*90*33

53310U

1.2

50*100*37

53311U

1.68

55*110*42

53312U

1.71

60*115*42

53313U

1.89

65*120*43

53314U

2.51

70*130*48

53315U

3.2

75*140*52

53316U

3.24

80*145*52

53317U

4.35

85*155*58

53405U

0.428

25*62*29

53406U

0.602

30*75*33

53407U

1.04

35*85*37

53408U

1.35

40*95*42

53409U

1.62

45*105*46

53410U

2.31

50*115*50

53411U

3.08

55*125*55

53412U

3.8

60*135*58

53413U

5.5

65*145*65

53414U

6.5

70*155*69

53415U

8.1

75*165*75

53416U

9.9

80*175*78

Warehousing and delivery

Shandong Delitong Bearing Co., Ltd., founded in 2002, is located in the industrial zone of Linqing, Shandong Province. It is a bearing production base integrating design, production and sales. The company has strong technical strength, complete measurement, physical and chemical inspection, and testing methods, strong product research and development capabilities, and technological innovation capabilities. It can design and produce bearings for various industries with 0, 2, 3, 6, 7, 8, 9, 7 types, 3 accuracy levels, and over 4000 specifications for various purposes. The products are widely used in industries such as metallurgy, shipbuilding, petroleum, chemical industry, mining, coal, hydropower, heavy machinery, etc.
