52000 Series

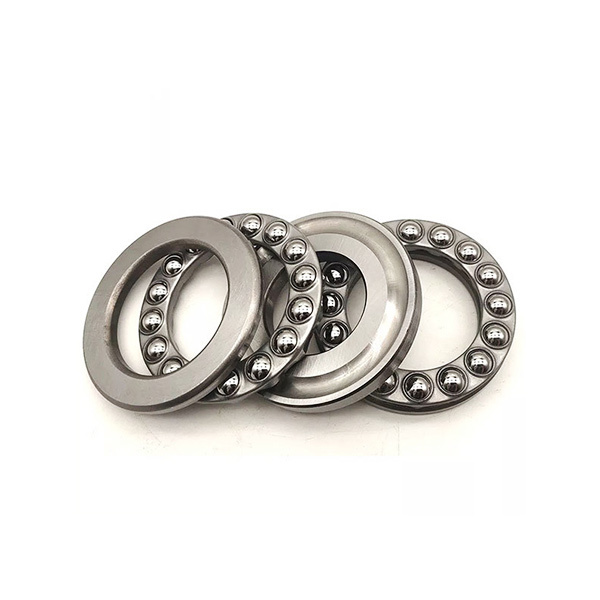

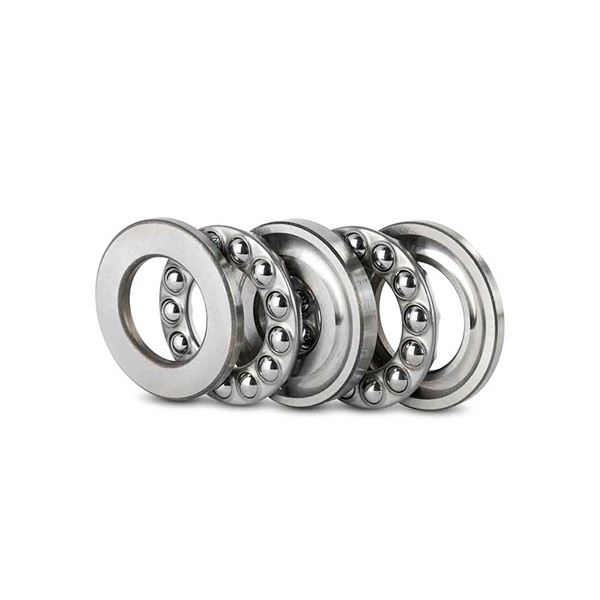

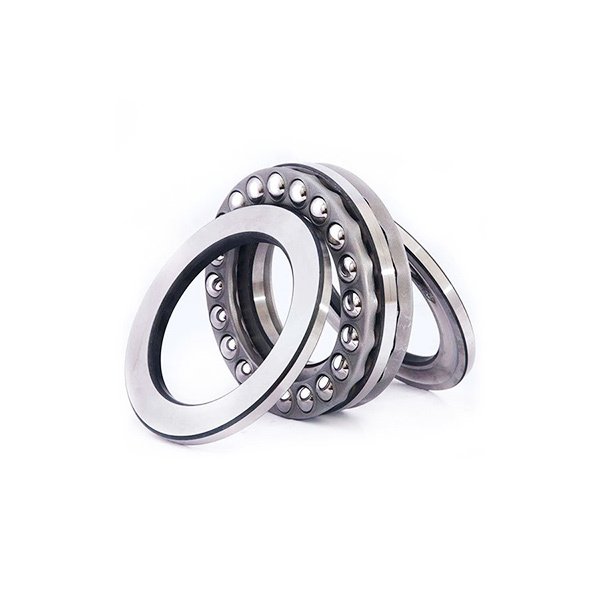

Double direction thrust ball bearings type 52000 can withstand axial thrust loads in two directions, and can limit the movement of the shaft and housing in one direction. These bearings have a separable design for easy installation, removal and bearing inspection.

Category：

Thrust ball bearings

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Inquire

52000 Series

Bearing Number	Dimensions （mm）
52202	15(10)×32×22
52204	20(15)×40×26
52205	25(20)×47×28
52206	30(25)×52×29
52207	35(30)×62×34
52208	40(30)×68×36
52209	45(35)×73×37
52210	50(40)×78×39
52211	55(45)×90×45
52212	60(50)×95×46
52213	65(55)×100×47
52214	70(55)×105×47
52215	75(60)×110×47
52216	80(65)×115×48
52217	85(70)×125×55
52218	90(75)×135×62
52220	100(85)×150×67
52220M
52222	110(95)×160×67
52224	120(100)×170×68
52224M
52226	130(110)×190×80
52228M	140(120)×200×81
52228	140(120)×200×81
52230	150(130)×215×83
52230M	150(130)×215×89
52232	160(140)×225×90
52232M
52234M	170(150)×240×97
52234	170(150)×240×97
52236	180(150)×250×98
52236M
52238	190(160)×270×109
52238J	190(160)×270×109
52240	200(170)×280×109
52244	220×300×110
52305	25(20)×52×34
52306	30(25)×60×38
52307	35(30)×68×44
52308	40(30)×87×49
52309	45(35)×85×52
52310	50(40)×95×58
52311	55(45)×105×64
52312	60(50)×110×64
52313	65(55)×115×65
52314	70(55)×125×72
52315	75(60)×135×79
52316	80(65)×140×79
52317	85(70)×150×87
52318	90(75)×190×110
52320	100(85)×170×97
52322	110(95)×1490×110
52322M
52324	120(100)×210×123
52324M
52326M	130(110)×225×130
52326	130(110)×225×130
52328	140(120)×240×140
52330	150(130)×250×140
52330M
52332	160(140)×270×153
52334	160(140)×270×153
52336	180(150)×300×165
52338	190×320×183
52340	200×340×192
52405	25(15)×60×45
52406	30(20)×70×52
52407	35(25)×80×59
52408	40(30)×90×65
52409	45(35)×100×72
52410	50(40)×110×78
52411	55(45)×120×87
52411M
52412	60(50)×130×93
52413	65(50)×140×101
52414	70(55)×150×107
52414M
52415	75(75)×160×115
52416	80(68)×170×201
52417	85(65)×180×128
52417M
52418	90(70)×190×135
52420M	100(80)×210×150
52420	100(80)×210×150
52422	110(90)×230×166
52422M
52424	120×250×177
52426	130(100)×270×192
52428	140(110)×280×195
52430	150(120)×300×209
52432	160×320×226
52434	170×340×236
52436	180×360×245
527/49	49(41)×78×63.41
527/88	88(74)×118×69.4
527/340	340(300)×400×80
52780	400(350)×440×70
527/615	615(570)×700×90
527/940	940(865)×1030×110
527/950.8M	950.8(845)×1030×110
527/950.8/YB2	950.8(845)×1030×110
527/950.8/YA3	950.8(845)×1030×120
527/1181	1181(1070)×1280×145
527/1226	1226×1360×200
527/1300	1300×1600×235
527/1520	1520(1420)×1720×270
54226U	130(100)×195×96
54307U	37(30)×72×52
54320U	100(85)×175×115
54324MU	120(100)×220×143
54324U	120(100)×220×143
48701(48910)	50(28.5)×108×79
54320	100(85)×170×105.4
54410	50×110×83.2
