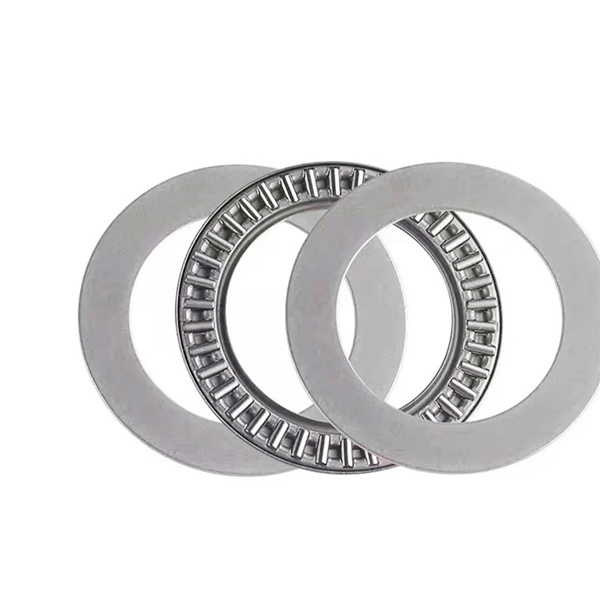

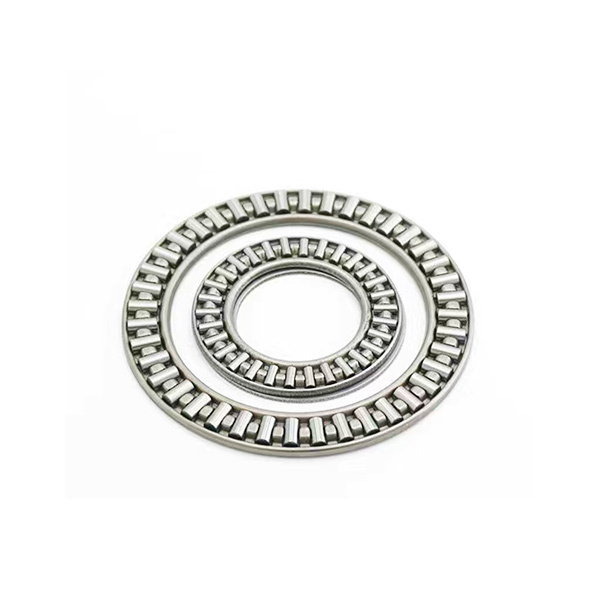

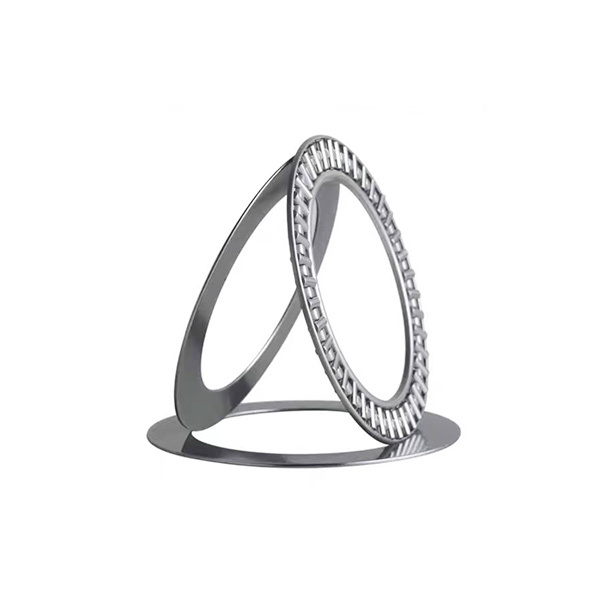

Thrust needle roller

Needle roller thrust bearings are fitted with a form-stable cage to reliably retain and guide a large number of needle rollers. Needle roller thrust bearings provide a high degree of stiffness within a minimum axial space. In applications where the faces of adjacent machine components can serve as raceways, needle roller thrust bearings take up no more space than a conventional thrust washer.

Category：

Thrust roller bearings

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Inquire

Thrust needle roller

Bearing Number	Dimensions （mm）
AXK0619	6×19×2
AXK0821TN	8×21×2
AXK1024	10×24×2
AXK1226	12×26×2
AXK1528	15×28×2
AXK1730	17×30×2
AXK2035	20×35×2
AXK2542	25×42×2
AXK3047	30×47×2
AXK3552	35×52×2
AXK4060	40×60×3
AXK4565	45×65×3
AXK5070	50×70×3
AXK5578	55×78×3
AXK6085	60×85×2
AXK6590	65×90×3
AXK7095	70×95×4
AXK75100	75×100×4
AXK80105	80×105×4
AXK85110	85×110×4
AXK90120	90×120×4
AXK100135	100×135×4
AXK110145	110×145×4
AXK120155	120×155×4
AXK130170	130×170×5
AXK140180	140×180×5
AXK150190	150×190×5
AXK160200	160×200×5
AXK0414TN	4×14×2
AXK0515TN	5×15×2
AXK/6x14x1.5	6×14×1.5
AXK/6x14x2TN	6×14×2
AXK/6x14x2	6×17×2
AXK/6x23x2	6×23×2
AXK/10x20x2	10×20×2
AXK/10x27x2.5	10×27×2.5
AXK/17x35x2	17×35×2
AXK/19.5x32x2	19.5×32×2
AXK/21x32x2	21×32×2
AXK/29x32x2.05	29×32×2.05
AXK/29x50x2	29×50×2
AXK/29x51x2	29×51×2
AXK/29.1x44x2	29.1×44×2
AXK/30x42x2.5	30×42×2.5
AXK/33x49x2	33×49×2
AXK/40x60x2	40×60×2
NTA-411	6.35×17.45×1.984
NTA-512	7.92×19.5×1.984
NTA-815	12.7×23.8×1.984
NTA-1423	22.22×36.5×1.984
NTA-1828	28.58×44.45×1.984
NTA-2031	31.75×49.2×1.984
NTA-2031K1	31.75×49.2×2
NTA-2435	38.1×55.55×1.984
NTA-3244	50.8×69.85×1.984
NTA-3648	57.15×86.2×1.984
NTA-4052	63.5×82.55×1.984
AXW10	10×27×3.2
AXW12	12×29×3.2
AXW15	15×31×3.2
AXW17	17×33×3.2
AXW20	20×38×3.2
AXW25	25×45×3.2
AXW30	30×50×3.2
AXW35	35×55×3.2
AXW40	40×63×4.2
AXW45	45×68×4.2
AXW50	50×73×4.2

Warehousing and delivery

Shandong Delitong Bearing Co., Ltd., founded in 2002, is located in the industrial zone of Linqing, Shandong Province. It is a bearing production base integrating design, production and sales. The company has strong technical strength, complete measurement, physical and chemical inspection, and testing methods, strong product research and development capabilities, and technological innovation capabilities. It can design and produce bearings for various industries with 0, 2, 3, 6, 7, 8, 9, 7 types, 3 accuracy levels, and over 4000 specifications for various purposes. The products are widely used in industries such as metallurgy, shipbuilding, petroleum, chemical industry, mining, coal, hydropower, heavy machinery, etc.
