2200 Series

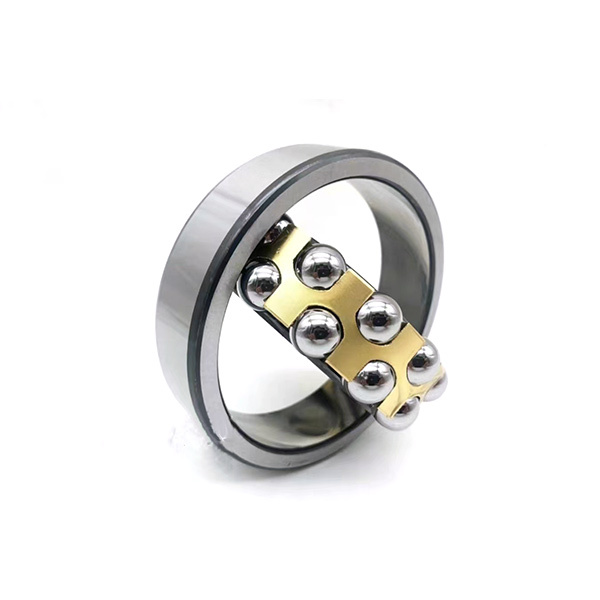

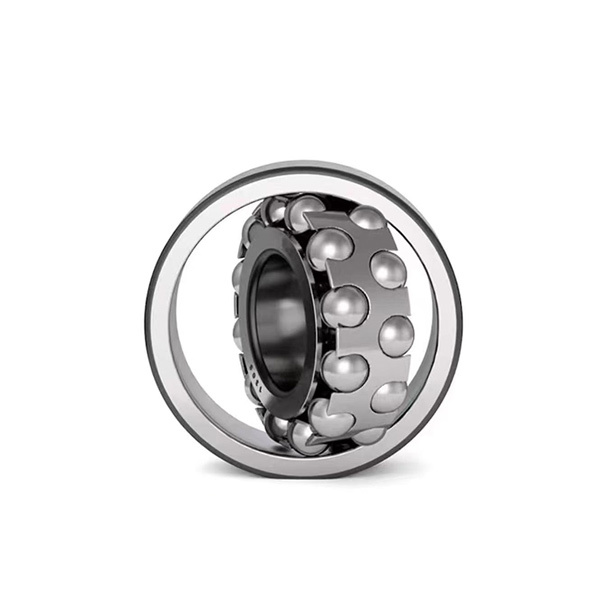

Self-aligning ball bearings have two rows of balls and a common sphered raceway in the outer ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing. Self-aligning ball bearings generate less friction than any other type of rolling bearing, which enables them to run cooler even at high speeds.

Category：

Aligning ball bearings

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Inquire

2200 Series

Self-aligning ball bearings have two rows of balls and a common sphered raceway in the outer ring.
The bearings are insensitive to angular misalignment of the shaft relative to the housing.
Self-aligning ball bearings generate less friction than any other type of rolling bearing, which enables them to run cooler even at high speeds.

Bearing No.		Boundary Dimensions (mm)				Basic Load Rating(KN)		Limiting Speed		Weight Kg(pc)
Bearing Type						Rated load		Limit speed		weight
Cylindrical Bore	Tapered Bore					Dynamic	Static	Grease	Oil	Cylindrical	Tapered
Cylindrical Bore	Tapered Bore	d	D	B	r (min.)	Cr	Cor	r/min	r/min	Bore	Bore
2200		10	30	14	0.6	7.4	1.6	23000	29000	0.047
2201		12	32	14	0.6	7.65	1.75	21000	26000	0.053
2202		15	35	14	0.6	7.7	1.85	18000	22000	0.06
2203		17	40	16	0.6	9.8	2.4	16000	20000	0.088
2204	2204K	20	47	18	1	12.6	3.3	14000	17000	0.14	0.136
2205	2205K	25	52	18	1	12.6	3.3	12000	15000	0.163	0.158
2206	2206K	30	62	20	1	15.6	4.65	10000	12000	0.26	0.254
2207	2207K	35	72	23	1.1	21.6	6.6	8500	10000	0.403	0.396
2208	2208K	40	80	23	1.1	22.4	7.4	7600	9300	0.505	0.494
2209	2209K	45	85	23	1.1	23.3	8.15	7000	8500	0.545	0.533
2210	2210K	50	90	23	1.1	23.3	8.5	6500	7900	0.59	0.577
2211	2211K	55	100	25	1.5	26.8	10	5800	7100	0.81	0.792
2212	2212K	60	110	28	1.5	34.1	12.6	5300	6500	1.09	1.07
2213	2213K	65	120	31	1.5	43.5	16.4	4900	5900	1.46	1.43
2214	2214K	70	125	31	1.5	43.9	17.1	4600	5600	1.52
2215	2215K	75	130	31	1.5	44.2	17.8	4300	5300	1.62	1.58
2216	2216K	80	140	33	2	49	19.9	4100	5000	2.01	1.97
2217	2217K	85	150	36	2	58.3	23.6	3800	4600	2.52	2.46
2218	2218K	90	160	40	2	67.7	27.2	3500	4300	3.4	3.33
2219	2219K	95	170	43	2.1	82.7	34.3	3300	4000	4.1	4
2220	2220K	100	180	46	2.1	80.9	34	3100	3800	4.98	4.87
2221		105	190	50	2.1	94.9	40.1	3000	3600	6.07
2222	2222K	110	200	53	2.1	120	48.9	2800	3400	7.1	6.94

Warehousing and delivery

Shandong Delitong Bearing Co., Ltd., founded in 2002, is located in the industrial zone of Linqing, Shandong Province. It is a bearing production base integrating design, production and sales. The company has strong technical strength, complete measurement, physical and chemical inspection, and testing methods, strong product research and development capabilities, and technological innovation capabilities. It can design and produce bearings for various industries with 0, 2, 3, 6, 7, 8, 9, 7 types, 3 accuracy levels, and over 4000 specifications for various purposes. The products are widely used in industries such as metallurgy, shipbuilding, petroleum, chemical industry, mining, coal, hydropower, heavy machinery, etc.
