222xx Series

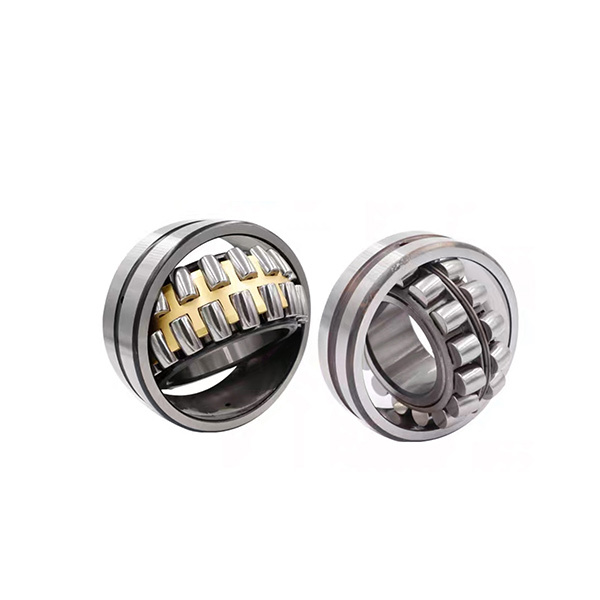

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Category：

Spherical roller bearings

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Inquire

222xx Series

Spherical roller bearing with relubrication features.
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
Suffixes：
C-Spherical roller bearing with symmetrical rollers and floating central guide ring;
CA-Spherical roller bearing of C design but with two integral inner ring flanges and machined cage;
CC-Spherical roller bearing of C design but with improved roller guidance and reduced friction;
CAC-Spherical roller bearing of CA design but with improved roller guidance and reduced friction;
E-Standard spherical roller bearing with modified internal design, increased carrying capacity and W33 features;
J-Pressed steel cage;
K-Tapered bore, taper 1:12 on diameter;
K30- Tapered bore, taper 1:30 on diameter;
M- Machined brass cage ;

Bearing Number	d(mm)	D(mm)	B(mm)
22206	30	62	20
22207	35	72	23
22208	35	80	23
22209	45	85	23
22210	50	90	23
22211	55	100	25
22212	60	110	28
22213	65	120	31
22214	70	125	31
22215	75	130	31
22216	80	140	33
22217	85	150	36
22218	90	160	40
22219	95	170	43
22220	100	180	46
22222	110	200	53
22224	120	215	58
22226	130	230	64
22228	140	250	68
22230	150	270	73
22232	160	290	80
22234	170	310	86
22236	180	320	86
22238	190	340	92
22240	200	360	98
22244	200	400	108
22248	240	440	120
22256	280	500	130

Warehousing and delivery

Shandong Delitong Bearing Co., Ltd., founded in 2002, is located in the industrial zone of Linqing, Shandong Province. It is a bearing production base integrating design, production and sales. The company has strong technical strength, complete measurement, physical and chemical inspection, and testing methods, strong product research and development capabilities, and technological innovation capabilities. It can design and produce bearings for various industries with 0, 2, 3, 6, 7, 8, 9, 7 types, 3 accuracy levels, and over 4000 specifications for various purposes. The products are widely used in industries such as metallurgy, shipbuilding, petroleum, chemical industry, mining, coal, hydropower, heavy machinery, etc.
