Welcome to Introduction to Shandong Delitong Bearing Co., Ltd
Miniature Bearings
Category：
Miniature Bearings

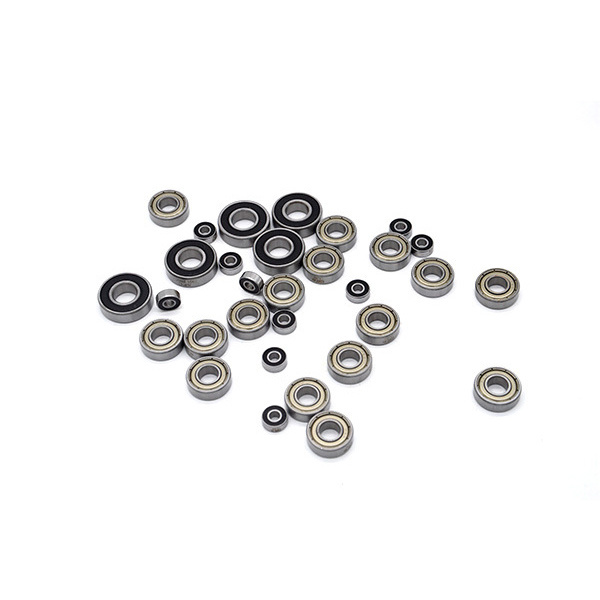

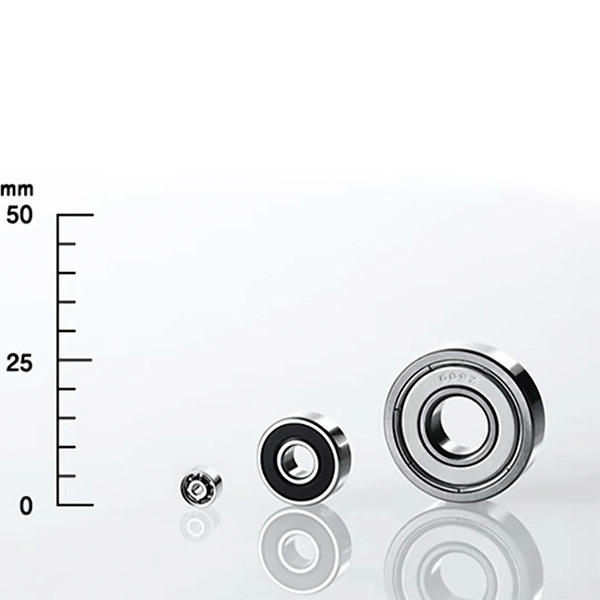

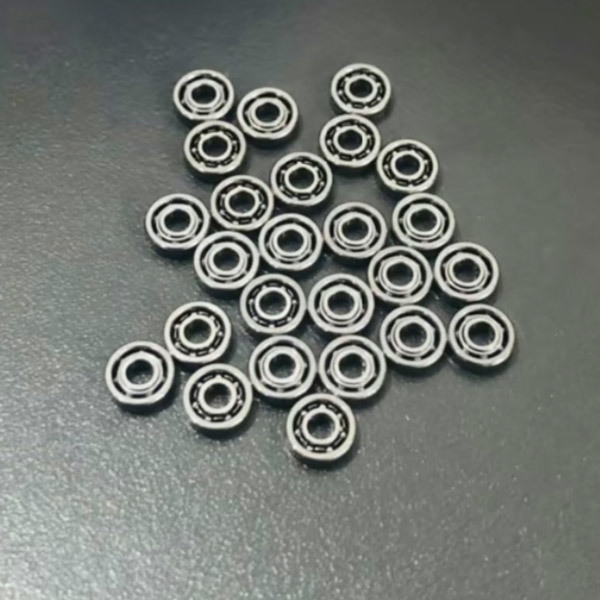

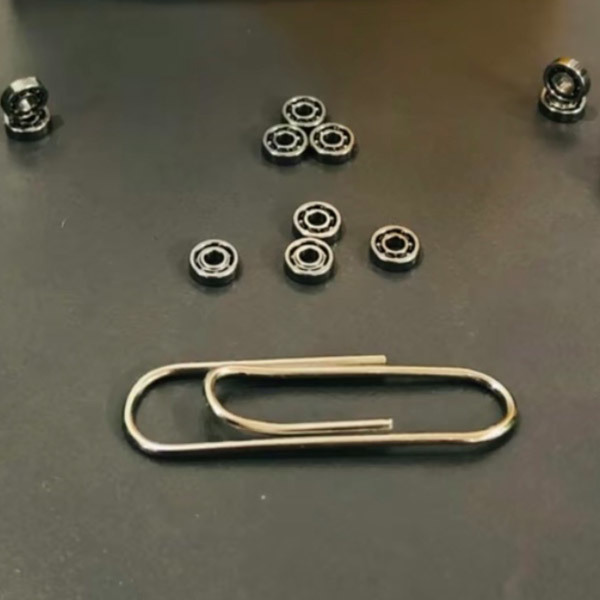

Miniature deep groove ball bearings refer to metric series, with an outer diameter of less than 9mm; inch series, of various types of bearings with an outer diameter of less than 9.525mm, the main materials are carbon steel, bearing steel, stainless steel, plastic, ceramics, etc., of which the smallest inner diameter can be achieved 0.6mm, generally with an inner diameter of 1mm. Miniature deep groove balls are suitable for all kinds of industrial equipment, small rotary motors and other fields with high speed and low noise.
|
Model Number |
d/mm |
D/mm |
B/mm |
|
605 |
5 |
14 |
5 |
|
606 |
6 |
17 |
6 |
|
606-RS |
6 |
17 |
6 |
|
606-2RS |
6 |
17 |
6 |
|
607 |
7 |
19 |
6 |
|
607-Z |
7 |
19 |
6 |
|
607-RZ |
7 |
19 |
6 |
|
607-2RS |
7 |
19 |
6 |
|
607-2RZ |
7 |
19 |
6 |
|
608 |
8 |
22 |
7 |
|
608-Z |
8 |
22 |
7 |
|
608-2Z |
8 |
22 |
7 |
|
608-RS |
8 |
22 |
7 |
|
608-RZ |
8 |
22 |
7 |
|
608-2RS |
8 |
22 |
7 |
|
608-2RZ |
8 |
22 |
7 |
|
608-2RZ/C3LHT |
8 |
22 |
7 |
|
609 |
9 |
24 |
7 |
|
609-Z |
9 |
24 |
7 |
|
609-2Z |
9 |
24 |
7 |
|
609-RS |
9 |
24 |
7 |
|
Bearing Number |
d/mm |
D/mm |
B/mm |
|
623 |
3 |
10 |
4 |
|
624 |
4 |
13 |
5 |
|
625 |
5 |
16 |
5 |
|
626 |
6 |
19 |
6 |
|
628 |
8 |
24 |
8 |
|
629 |
9 |
26 |
8 |
|
634 |
4 |
16 |
5 |
|
635 |
5 |
19 |
6 |
|
638 |
9 |
17 |
4 |
|
Bearing Number |
d mm |
D mm |
B mm |
|
MR52zz |
2 |
5 |
2 |
|
MR62zz |
2 |
6 |
2.5 |
|
MR72zz |
2 |
7 |
2.8 |
|
MR82X |
2 |
8 |
2.5 |
|
MR63zz |
3 |
6 |
2 |
|
MR83zz |
3 |
8 |
2.5 |
|
MR93zz |
3 |
9 |
2.5 |
|
MR74zz |
4 |
7 |
2 |
|
MR84zz |
4 |
8 |
2 |
|
MR104zz |
4 |
10 |
3 |
|
MR85zz |
5 |
8 |
2 |
|
MR95zz |
5 |
9 |
2.5 |
|
MR105zz |
5 |
10 |
3 |
|
MR115zz |
5 |
11 |
- |
|
MR106zz |
6 |
10 |
2.5 |
|
MR126zz |
6 |
12 |
3 |
|
MR117zz |
7 |
11 |
2.5 |
|
MR137zz |
7 |
13 |
3 |
|
MR128zz |
8 |
12 |
2.5 |
|
MR148zz |
8 |
14 |
3.5 |
|
Bearing Number |
d mm |
D mm |
B mm |
|
R1212 2RS |
12.7 |
19.05 |
3.967 |
|
R8 2RS |
28.575 |
7.938 |
|
|
RLS4 2RS |
33.338 |
9.525 |
|
|
RMS4 2RS |
41.275 |
15.88 |
|
|
R1458 2RS |
15.875 |
22.225 |
3.967 |
|
R10 2RS |
34.925 |
8.733 |
|
|
RLS5 2RS |
39.688 |
11.11 |
|
|
RMS5 2RS |
46.038 |
15.88 |
|
|
R1634 2RS |
19.05 |
25.4 |
3.967 |
|
R12 2RS |
41.275 |
11.11 |
|
|
RLS6 2RS |
47.625 |
14.29 |
|
|
RMS6 2RS |
50.8 |
17.46 |
|
|
R14 2RS |
22.225 |
47.625 |
12.7 |
|
RLS7 2RS |
50.8 |
14.29 |
|
|
RMS7 2RS |
57.15 |
17.46 |
|
|
R16 2RS |
25.4 |
50.8 |
12.7 |
|
RLS8 2RS |
57.15 |
15.88 |
|
|
RMS8 2RS |
63.5 |
19.05 |
Warehousing and delivery
Shandong Delitong Bearing Co., Ltd., founded in 2002, is located in the industrial zone of Linqing, Shandong Province. It is a bearing production base integrating design, production and sales. The company has strong technical strength, complete measurement, physical and chemical inspection, and testing methods, strong product research and development capabilities, and technological innovation capabilities. It can design and produce bearings for various industries with 0, 2, 3, 6, 7, 8, 9, 7 types, 3 accuracy levels, and over 4000 specifications for various purposes. The products are widely used in industries such as metallurgy, shipbuilding, petroleum, chemical industry, mining, coal, hydropower, heavy machinery, etc.
