Open and sealed two structures. There are open bearings, bearings with dust covers, seals or snap rings. Open type means that the bearing does not have a sealed structure, and the sealed thin-walled deep groove ball is divided into dust-proof seal and oil-proof seal. The material of the dust-proof sealing cover is stamped steel plate, which only serves to prevent dust from entering the bearing raceway. The oil-proof type is a contact oil seal, which can effectively prevent the grease in the bearing from overflowing.

Category：

Deep groove ball bearings

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Related
Inquire

6700 Series

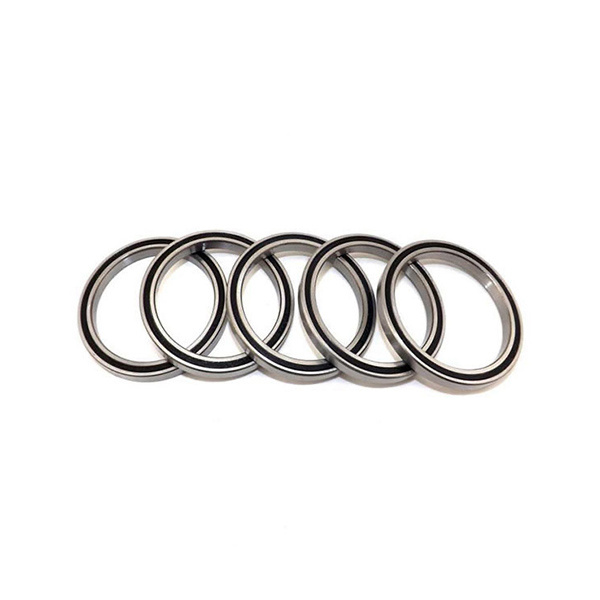

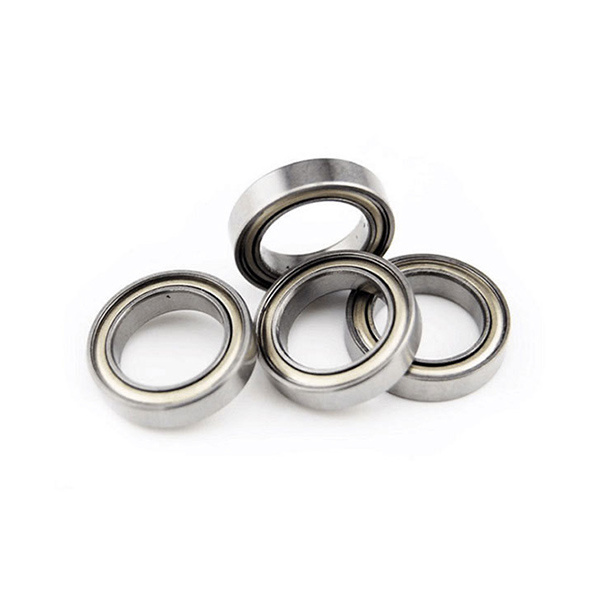

Thin-walled deep groove ball bearings consist of inner ring, outer ring, steel balls, cage, grease and seals.
Thin-walled deep groove ball bearing types:
Open and sealed two structures. There are open bearings, bearings with dust covers, seals or snap rings. Open type means that the bearing does not have a sealed structure, and the sealed thin-walled deep groove ball is divided into dust-proof seal and oil-proof seal. The material of the dust-proof sealing cover is stamped steel plate, which only serves to prevent dust from entering the bearing raceway. The oil-proof type is a contact oil seal, which can effectively prevent the grease in the bearing from overflowing.



Bearing Number

d mm

D mm

B mm

6700

10

15

4

6701

12

18

4

6702

15

21

4

6703

17

23

4

6704

20

27

4

6705

25

32

4

6706

30

37

4

6707

35

44

5

6708

40

50

6

6709

45

55

6

6710

50

62

6

6711

55

68

7

Warehousing and delivery

Shandong Delitong Bearing Co., Ltd., founded in 2002, is located in the industrial zone of Linqing, Shandong Province. It is a bearing production base integrating design, production and sales. The company has strong technical strength, complete measurement, physical and chemical inspection, and testing methods, strong product research and development capabilities, and technological innovation capabilities. It can design and produce bearings for various industries with 0, 2, 3, 6, 7, 8, 9, 7 types, 3 accuracy levels, and over 4000 specifications for various purposes. The products are widely used in industries such as metallurgy, shipbuilding, petroleum, chemical industry, mining, coal, hydropower, heavy machinery, etc.

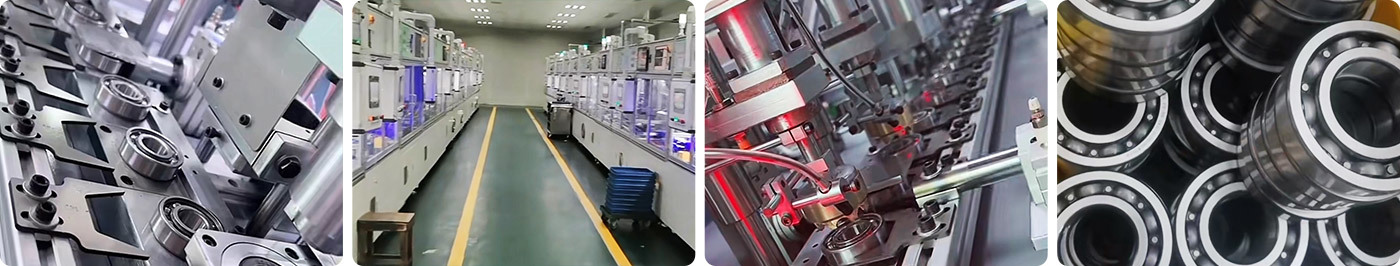

Workshop Video
