Double Row

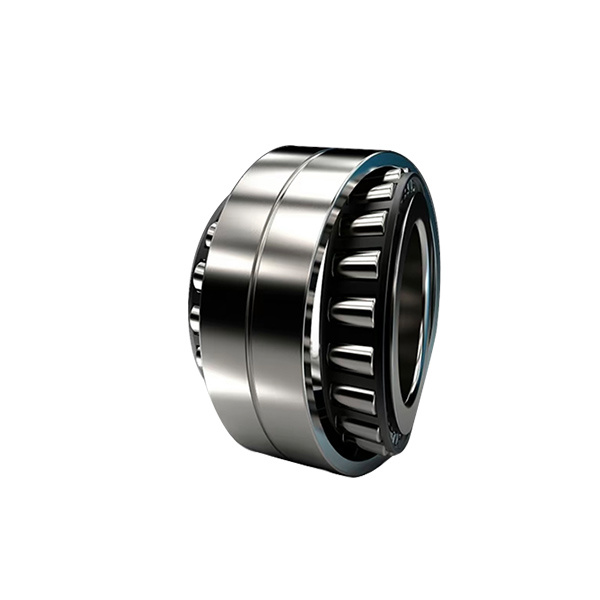

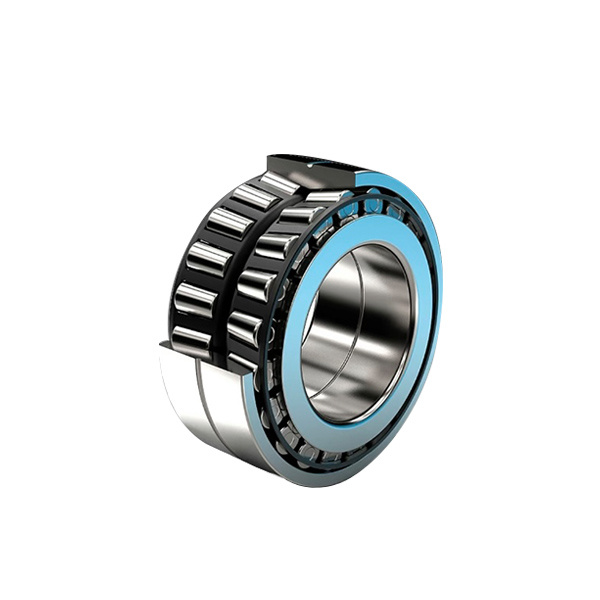

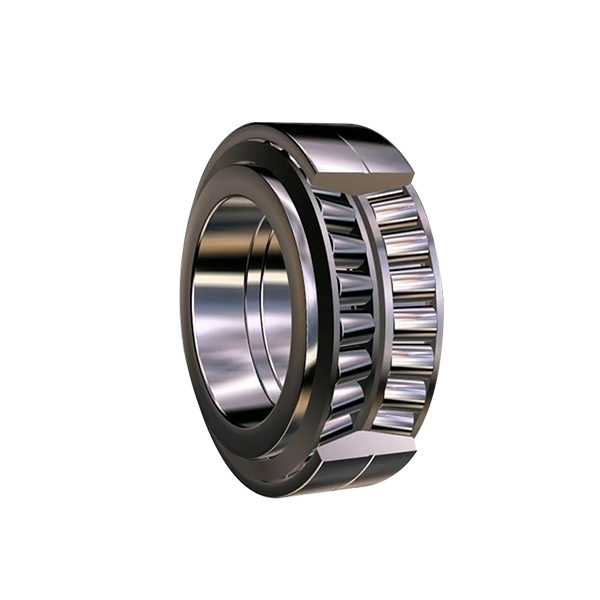

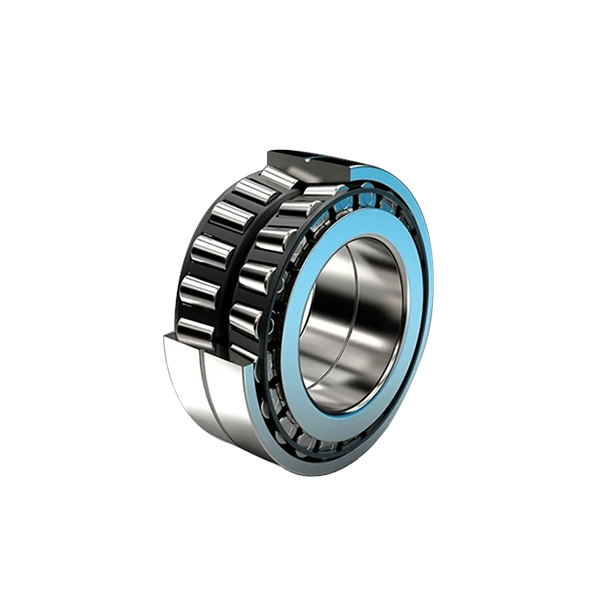

Double row tapered roller bearing, the bearing has one outer ring and two inner rings, and there is a spacer between the two inner rings. The clearance can be adjusted by changing the thickness of the spacer. It can bear radial load and bidirectional axial load at the same time. Double row tapered roller bearings are typically used in gearboxes, hoisting equipment, rolling mills and machines in the mining industry, e.g. tunnelling machines.

Category：

Tapered roller bearings

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Inquire

Double Row

Bearing Number	Dimensions(mm)
352224D	120×215×312
350620D1	100×190×125
350626D1	130×235×145
350630D1	150×255×145
352132X2D1	160×270×140
352936X2D1/YA1	180×250×95
350636D1	180×285×108
350641D1	205×320×150
3506/203.2D1/YA3	203.2×276.225×95.25
350645D1	225×360×146.5
350646D1	230×360×146.5
350652D1	260×430×180
3506/254D1	254×431.724×180
350660D1	300×440×140
352052X2D1	260×400×150
350668D1	340×500×155
350672D1	360×530×155
351084X2D1	420×620×190
350680D1	400×590×185
352930X2D	150×210×80
352034X2D	170×260×120
350307X2D	35×80×57
372218	90×160×94
372011X2	55×90×54
372016X2	80×125×58
372222X3	110×210×118
372224X2	120×215×87
371180X2	400×650×200
371180X2/HCYA	400×650×240
371184X2	420×700×224
371188X2	440×720×226
3711/500X2	500×830×330
178880SU	400×650×240
370622	110×240×118
3706/260.35	260.35×444.5×196.85
3706/228.925	228.925×406.4×114.463
3706/550B/HCC2	550×920×330
K87718-1Y	88.9×279.4×101.6
3706/305.07	305.07×500×200
370660/YA	300×440×105
3706/500	500×730×280
3706/501.625	501.625×711.2×250.825
3706/501.625/P6	501.625×711.2×250.825
3706/501.13/HC	510.3×800×285
3506/520	520×740×190
3506/530	530×730×250
3706/670B/YA	670×980×230
3706/570	570×750×280
351976	380×520×145
351980	400×540×150
31980/P59	400×540×150
351984	420×560×145
351984/P59	420×560×145
351988	440×600×170
351992	460×620×170
351996	480×650×180
3519/500	500×670×180
3519/500/HC	500×670×180
3519/530	530×710×190
3519/530J	530×710×190
3519/560	560×750×213
3519/600	600×800×205
3519/600HC	600×800×205
3519/630	630×850×242
3519/630/C2	630×850×242
3519/670	670×900×240
3519/710	710×950×240
3519/750	750×1000×264
3519/750HC	750×1000×264
3519/800/S0	800×1060×270
3519/800/C3S0	800×1060×270
3519/800	800×1060×270
3519/850	850×1120×268
3519/900	900×1180×275
3519/950/HC	950×1250×300
3519/950	950×1250×300
3519/1120	1120×1460×335
352926	130×180×70
352928	140×190×73
352930	150×210×80
352932	160×220×82
352934	170×230×82
352936	180×250×90
352938	190×260×95
352940	200×280×105
352944	220×300×110
352948	240×320×110
352952	260×360×134
352956	280×380×134
352960	300×460×160
352964	320×460×160
352968	360×460×160
352972	360×480×160
351056	280×420×133
351068	340×520×180
351072	360×540×185
351072/YA1	360×540×185
351076	380×560×190
351080	400×600×206
351088	440×650×212
351092	460×680×230
351096	480×700×240
3510/500	500×720×236
3510/500J	500×720×236
3510/530	530×780×255
3510/560	560×820×260
3510/600	600×870×270
3510/630	630×920×295
3510/670	670×980×310
3510/710	710×1030×315
352015	75×115×58
352026	130×200×102
352028	140×210×95
352030	150×225×110
352032	160×240×116
352032/YA	160×240×116
352034	170×260×128
352034/YA	170×260×128
352036	180×280×142
352038	190×290×142
352040	200×310×154
352044	220×340×166
352060	300×466×210
351160	300×500×205
351176	380×620×242
351184HC	420×700×275
352122	110×180×95
352124	120×200×110
352126	130×210×110
352128	140×225×115
352130	150×250×138
352132/YA1	160×270×150
352132/YB	160×270×150
352134/W33	170×280×150
352134	170×280×150
352136	180×300×160
352140	200×340×184
352140/YA1	200×340×184
352148	240×400×210
352152	260×440×225
352208	40×80×55
352210	50×90×55
352212	60×110×66
352211	55×100×60
352214	70×125×74
352215	75×130×74
352216	80×140×78
352217	85×150×86
352218	90×160×94
352219	95×170×100
352220	100×180×107
352221	105×190×115
352222	110×200×121
352224	120×215×132
352224/YA	120×215×132
352228	140×250×153
352230	150×270×164
352232	160×290×178
352234	170×310×192
352236/S0	180×320×192
352236	180×320×192
352238	190×340×204
352240	200×360×218
351980X2	400×540×70
352926X2	130×180×70
3529X2	160×220×82
352934X2	170×230×82
352936X2	180×250×95
352936X2/YA1	180×250×95
352938X2	190×260×95
352940X2	200×280×110
352940X2/YA1	200×280×116
352944X2	220×300×110
352948X2/YB2	240×320×105
352948X2/YA1	240×320×110
352948X2	240×320×110
352948X2/YA	240×320×110
352952X2/YB2	260×360×108
352952X2/YAYB2	260×360×108
352952X2	260×360×134
352952X2/YA1	260×360×134
352952X2-2	260×360×105
352956X2	280×380×134
352956X2/P59	280×380×134
352960X2/P59	300×420×160
352960X2	300×420×175
352960X2-2	300×420×175
352964X2	320×440×160
352964X2/C2	320×440×160
352968X2	340×460×160
352972X2	360×480×160
3529/1600X2	1600×2060×560
351080X2	400×600×230
351072X2	360×540×169
351076X2	380×560×171
3510/710X2/C3	710×1030×236
3510/710X2	710×1030×236
352026X2	130×200×95
352028X2/YA	140×210×75
352028X2	140×210×95
352032X2	160×240×115
352034X2	170×260×120
352036X2	180×280×134
352014X2	70×110×98
352040X2/YA	200×310×152
352040X2	200×310×152
352044X2/YA	220×340×165
352044X2	220×340×165
352048X2	240×360×165
352048X2/YA	240×360×165
352052X2/YA	260×400×186
352052X2	260×400×186
352056X2/YA	280×420×186
352056X2	280×420×186
352060X2	300×460×210
352060X2/C4	300×460×210
352064X2	320×480×151
352064X2/YA	320×480×151
352064X2/C9	320×480×151
352064X2F1	320×480×151
352064X2/C3	320×480×151
352072X2/YA	360×540×220
352072X2	360×540×220
352080X2	400×600×230
351160X2	300×500×200
371180X2B/HCC9	400×650×200
3511/500X2	500×830×330
352122X2/YA	110×180×76
352130X2	150×250×109
35213X2/C3S0	150×250×109
351232X2	160×270×150
352132X2/HA	160×270×150
352134X2/YA	170×280×150
350210X2	50×90×49
350222X2	110×200×92
352214X2	70×125×75
372216X2	80×140×56.75
372216X2/P6	80×140×56.75
352216X2	80×140×80
352217X2/YA	85×150×84
352218X2	90×160×95
352220X2-2	100×180×67.3
352220X2	100×180×112
352221X2	105×190×117
352222X2/YA1	110×200×92
352222X2	110×200×74
352226X2	130×230×149
352228X2	140×250×157
352230X2/YA	150×270×169
352230X2	150×270×172
352232X2	160×290×180
352236X2	180×320×190
350602	15×38×46
352013	65×100×60
350614	68×115×79.7
350615	74×132×71
3506/99.5	99.5×182×160
3506/99.5/S0	99.5×182×160
350620	100×182×112
350626/C9	130×214×115.6
3506/129.5	129.5×230×208
350633/C9	165×290×150
350636	180×340×180
350636/C3	180×340×180
350652	260×430×180
350660	300×420×175
3706/305.079/YA	305.079×500×200
3709/305.079	305.079×500×200
350666	330×420×100
350670	350×590×200
350672	360×530×155
3509/382/HA	381×590.55×244.475
350688	440×650×196
350698	490×640×180
3506/710/C3	710×1030×236
3506/720	720×915×190
879/839.8	839.8×1333.5×463.55
3506/1600	1600×2060×560
352220X2-2Z	100×182×117
352226X2-2Z-2	129×230×222
352223X2-2Z-1	129.5×230×222
352226X2-2Z	130×230×222
197726Y	130×230×222
197726-1	130×230×222
197726-2	130×230×222
197726K1	130×230×222
197726K2	130×230×222
352226X3-2Z/HG	130×250×160
352223X3-2Z/HGS0	130×250×160
3522262Z/S0	130×230×150
352226X1-2Z	130×250×217
352230-2Z	150×270×170
350626-2Z/YB2	129.5×230×222
3506/144.463-2Z	144.463×220.79×163.373
3506/119.095	119.095×195.26×136.5
3506/165.087	119.087×301.701×190.5

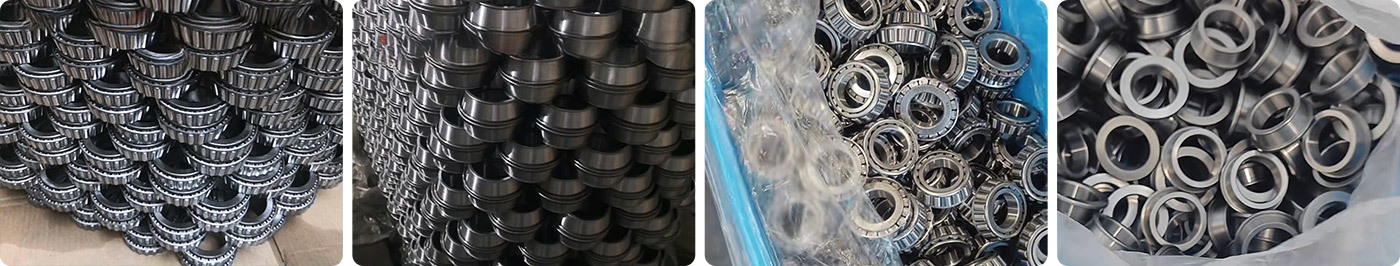

Warehousing and delivery

Shandong Delitong Bearing Co., Ltd., founded in 2002, is located in the industrial zone of Linqing, Shandong Province. It is a bearing production base integrating design, production and sales. The company has strong technical strength, complete measurement, physical and chemical inspection, and testing methods, strong product research and development capabilities, and technological innovation capabilities. It can design and produce bearings for various industries with 0, 2, 3, 6, 7, 8, 9, 7 types, 3 accuracy levels, and over 4000 specifications for various purposes. The products are widely used in industries such as metallurgy, shipbuilding, petroleum, chemical industry, mining, coal, hydropower, heavy machinery, etc.
