51000 Series

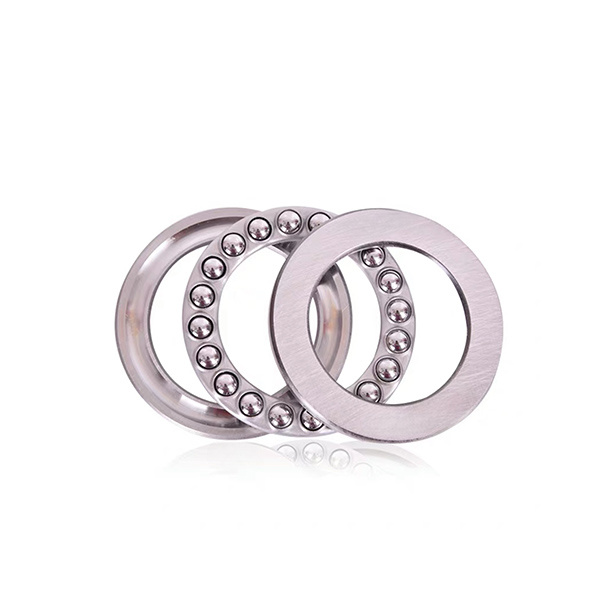

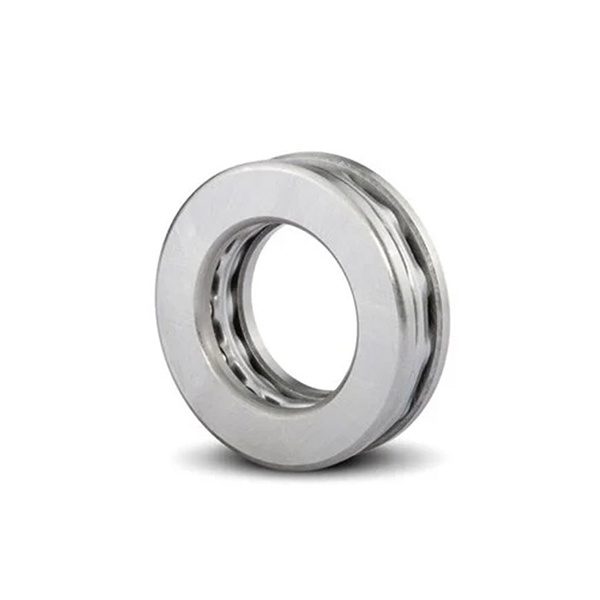

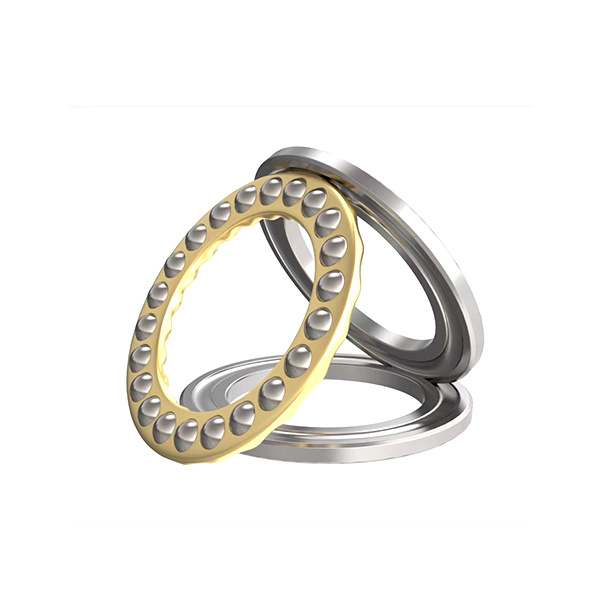

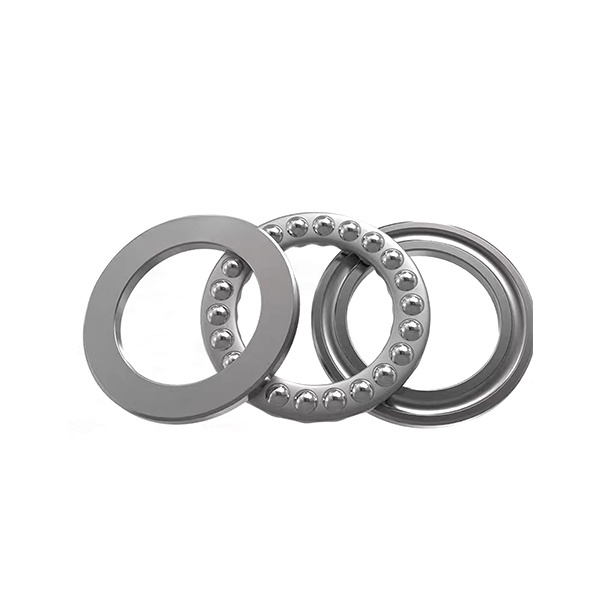

The 51000 Series Single Direction Thrust Ball Bearing has a Ball and Cage Assembly sandwiched between the ground ball track of the Housing Washer and the ground ball track of the Shaft Washer, contacting both rings at a 90-degree angle. These bearings are generally used in low speed applications and must be lubricated at installation with the appropriate grease or oil.

Category：

Thrust ball bearings

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Inquire

51000 Series

Bearing Number	Dimensions （mm）
59080	400×440×24
590/560	560×610×30
510/500	500×540×30
510/670	670×730×45
510/950	950×1030×60
510/1180	1180×1280×80
510/2360X1/HG/YA	2360×2568×150
59188	440×540×60
591/600	600×710×67
591/800	800×950×90
51100	10×24×9
51101	12×26×9
51102	15×28×9
51103	17×30×9
51104	20×35×10
51105	25×42×11
51106	30×47×11
51106/HV
51106TN1	30×47×11
51107	35×52×12
51107/HV	35×52×12
51107M	35×52×12
51108	40×60×13
51108/HV	40×60×13
51108M	40×60×13
51109	45×65×14
51109/HV
51109M	45×65×14
51110	50×70×14
51110M	50×70×14
51110/HV	50×70×14
51111	55×78×16
51111M	55×78×16
51111/HVS0	55×78×16
51112	60×85×17
51112M	60×85×17
51112/HV	60×85×17
51112/HVS1
51112/HV1S1
51113	65×90×18
51113M	65×90×18
51114	70×95×18
51114M	70×95×18
51115	75×100×19
51115M	75×100×19
51115M/YA2	75.2×100×19
51115/HVYA2	75.2×100×19
51115/HV1YA2	75.2×100×19
51116	80×105×19
51116M/YA2	80.2×105×19
51116/HVYA2	80.2×105×19
51116/HV1YA2	80.2×105×19
51117	85×110×19
51118	90×120×22
51118/HVS1	90×120×22
51118/HV1S1	90×120×22
51120	100×135×25
51120M	100×135×25
51120/T	100×135×25
51120Q1/HV
51122	100×145×25
51124	120×155×25
51124/HVS2	120×155×25
51124M	120×155×25
51126	130×170×30
51126M	130×170×30
51128	140×180×31
51128/HV	140×180×31
51128M	140×180×31
51130	150×190×31
51130M
51132	160×200×31
51132M	160×200×31
51132/HV
51134	170×215×34
51134M
51136	180×225×34
51136M
51138	190×240×37
51138M
51140	200×250×37
51140M
51140/HV
51144	220×270×37
51144M	220×270×37
51148	240×300×45
51152	260×320×45
51152M
51156	280×350×53
51160	300×380×62
51160M	300×380×62
51164	320×400×63
51164F1
51168	340×420×64
51172	360×440×65
51172M	360×440×65
51172F2/S3	360×440×65
51176	380×460×65
51180	400×480×65
51184	420×500×65
51188	440×540×80
51192	460×560×80
51192F1	460×560×80
51192M
51196	480×580×80
511/500	500×600×80
511/500/YA	500×600×80
511/530	530×640×85
511/600	600×710×85
511/670X1F3	670×795×105
511/670	670×800×105
511/750	750×900×90
572/710	710×950×109
592/710	710×950×145
51200	10×26×11
51200	12×28×11
51202	15×32×12
51203	17×35×12
51204	20×40×14
51205	25×47×15
51206	30×52×16
51206/YA
51206/HV
51206M
51207	35×62×18
51207/HV	35×62×18
51208	40×68×19
51208M	40×68×19
51208/HV
51209	45×73×20
51209F2	45×73×20
51210	50×78×22
51211	55×90×25
51212	60×95×26
51212M	60×95×26
51213	65×100×27
51214	70×105×27
51215	75×100×27
51216	80×115×28
51216/HV
51217	85×125×31
51217/HV
51218	90×135×35
51220	100×150×38
51222	110×160×38
51224	120×170×39
51224M
51226	130×190×45
51228	140×200×46
51228M
51230	150×215×50
51230M
51232	160×225×51
51232M
51234	170×240×55
51234M
51236	180×250×56
51236M
51236F2	180×250×56
51238	190×270×62
51238J	190×270×62
51240	200×280×62
51240M	200×280×62
51244	220×300×63
51244J	220×300×63
51248	240×340×78
51252	260×360×79
51252J	260×360×79
51256	280×380×80
51260	300×420×95
51260M	300×420×95
51264	320×440×95
51268	340×460×96
51268F1	340×460×96
51272	360×500×110
51280	400×540×112
51292	460×620×130
51292F3
512/500	500×670×135
512/630	630×850×175
512/630/S0	630×850×1758.41
51304	20×47×18
51305	25×52×18
51306	30×60×21
51306/HV
51307	36×68×24
51308	40×78×26
51308/HV
51309	45×85×28
51309/HV	45×85×28
51310	50×95×31
51310/YA	50×95×31
51311	55×105×35
51312	60×110×35
51313	65×115×36
51314	70×125×40
51314M	70×125×40
51314/YA	70×155×40
51315	75×135×44
51316	80×140×44
51316M	80×140×44
51317	85×150×49
51318	90×155×50
51320	100×170×55
51320M	100×170×55
51320F3
51322	110×190×63
51322M
51324F2	120×210×70
51324	120×210×70
51324M
51326	130×225×75
51326M
51328	140×240×80
51328M	140×240×80
51330	150×250×80
51330M	150×250×80
51332	160×270×87
51332M
51334	170×280×87
51336	180×300×95
51338	190×320×105
51340	200×340×110
51340M	200×340×110
51344	220×360×112
51348	240×380×112
51368	340×540×160
51368F1
51396	480×730×195
51405	25×60×24
51406	30×70×28
51407	35×80×32
51408	40×90×36
51408	45×100×39
51410	50×110×43
51410M
51411	55×120×48
51411M
51412	60×130×51
51413	65×140×56
51413M
51414M	70×150×60
51414	70×150×60
51415	75×160×65
51415M
51416	80×170×68
51417M
51417	85×180×72
51418	90×190×77
51418M
51420	100×210×85
51420M
51422	110×230×95
51422M
51424	120×250×102
51426	130×270×110
51426M
51426J
51428	140×280×112
51428F3
51430	150×300×120
51432	160×320×130
51434	170×340×135
51436	180×360×140
51438	190×380×150
51440	200×400×155
57304X1	20×37×12
51705	25×45×14
517/26.2	26.2×96×21
517/26.2/HV	26.2×96×21
57306X1	30×50×14
51207X3	35×55×16
517/36.8M	36.8×53.8×12
51708	40×100×28
517/42	42×58×12
517/42/HV	42×58×12
517/42/YA	42×60×13
51709	45×68×16
517/48	48×96×35
51710	50×74×18
517/53	53×72×15.5
517/53/HV	53×72×15.5
517/57	57×74×17.4
517/57/HV	57×74×17.4
517/57/HV1	57×74×17.4
517/58	58×120×64
51112X3	60×82×18
51113X2	65×90×20
51114X2	70×95×20
517/71.5	71.5×93×21
517/71.5/HV	71.5×93×21
51115X2	75×100×20
51715	75×128×41
517/78	78×98×15
517/78/HV	78×98×15
51116X3	80×110×22
59220X2	100×150×32.5
51720M	100×172×57
51720	100×172×57
51726X2	130×170×27
51730	150×200×35
51746	230×300×53.4
517/238	238×340×70
517/238/YA	238×340×70
51260X3	300×435×104
51762	310×360×42
51770	350×476×85
517/368M	368×529×131
517/84	420×550×80
51791	455×650×120
517/520F1	520×610×55
517/630	630×810×100
517/696	696×790×62
517/780	780×930×100
517/800M	800×920×100
517/930	930×1040×55
590/3000X2/HG	3000×3250×140
57172V	360×440×36
591/750V	750×900×90
591/1060V	1060×1250×115
51244X2V	220×300×93.75
51760V	300×432×104.8
51773V	365×475×95
517/42.6V	42.6×96×39.05
517/72V	72×128×40
517/330V	330×380×53
517/590V	590×670×65
517/708V	708×950×92
517/1720V	1720×1880×80
51706VD	30×50×14
51709VD	46×63.9×7.44
517/2860VD	2860×3140×210
517/708VK	708×950×92.8
517/1035VK	1035×1300×96.8

Warehousing and delivery

Shandong Delitong Bearing Co., Ltd., founded in 2002, is located in the industrial zone of Linqing, Shandong Province. It is a bearing production base integrating design, production and sales. The company has strong technical strength, complete measurement, physical and chemical inspection, and testing methods, strong product research and development capabilities, and technological innovation capabilities. It can design and produce bearings for various industries with 0, 2, 3, 6, 7, 8, 9, 7 types, 3 accuracy levels, and over 4000 specifications for various purposes. The products are widely used in industries such as metallurgy, shipbuilding, petroleum, chemical industry, mining, coal, hydropower, heavy machinery, etc.
