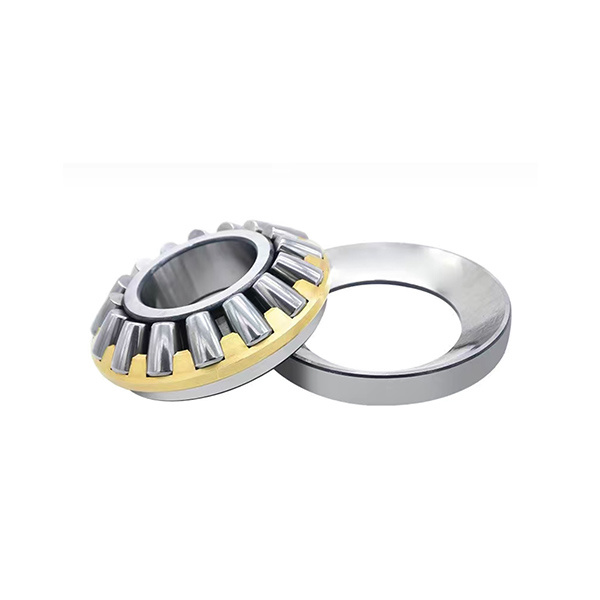

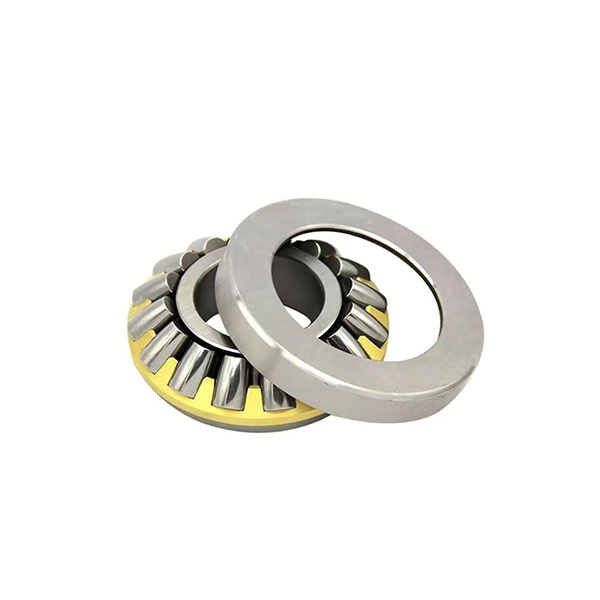

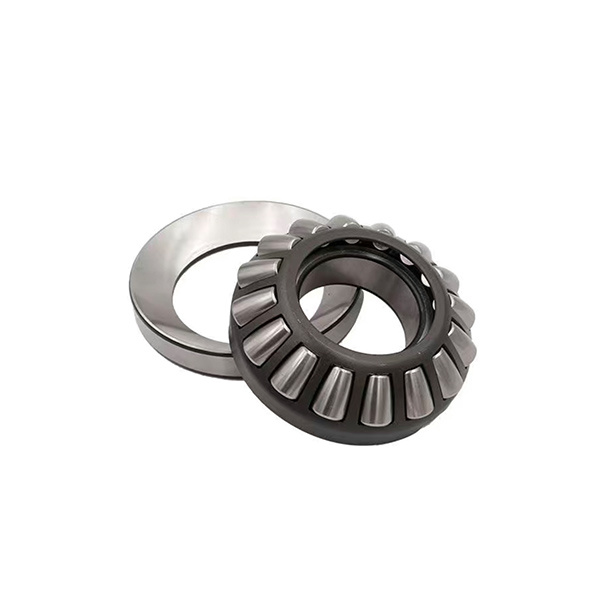

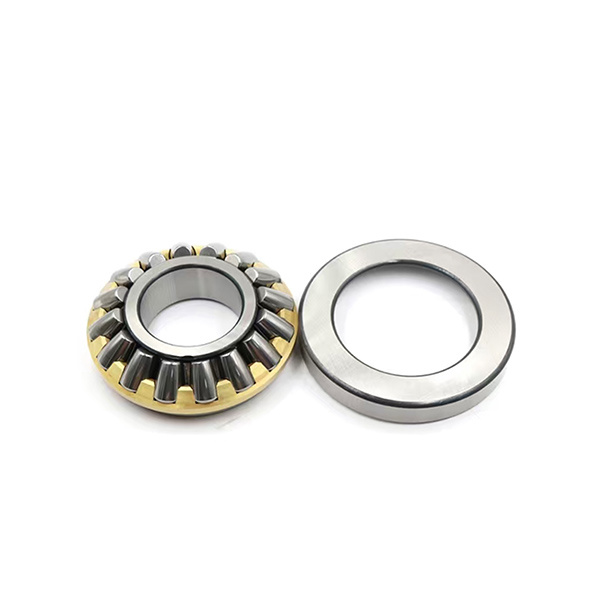

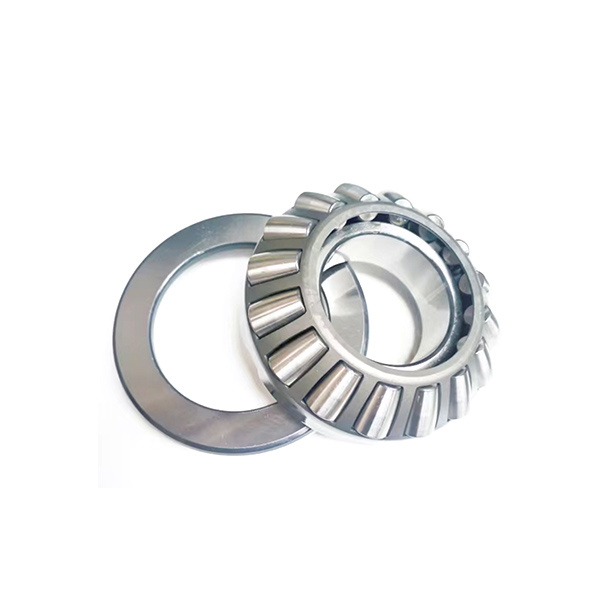

Thrust Spherical Roller Type 29000

Spherical roller thrust bearings have specially designed raceways and asymmetrical rollers. The bearings can accommodate axial loads acting in one direction and simultaneously acting radial loads. The load is transmitted between the raceways via the rollers at an angle to the bearing axis, while the flange guides the rollers .

Category：

Thrust roller bearings

Whatsapp:+86-18462269993

Email:delitong@cndltbearing.com

Inquire

Thrust Spherical Roller Type 29000

Bearing Number	Dimensions （mm）
29236	180×250×42
29238	190×270×48
29240	200×280×48
29244	220×300×48
29244E	220×300×48
29248	240×340×60
29248E	240×340×60
29252	260×360×60
29252E	260×360×60
29256	280×380×60
29256E	280×380×60
29260	300×420×73
29260E	300×420×73
29264	320×440×73
29264E	320×440×73
29268	340×460×73
29268E	340×460×73
29272	360×500×85
29272E	360×500×85
29276	380×520×85
29276E	380×520×85
29280	400×540×85
29280F3	400×540×85
29280E	400×540×85
29284	420×580×95
29284E	420×580×95
29288	440×600×95
29288E	440×600×95
29292	460×620×95
29292E	460×620×95
29296	480×650×103
29296E	480×650×103
292/500	500×670×103
292/500E	500×670×103
292/530	530×710×109
292/530E	530×710×109
292/560	560×750×115
292/560F3	560×750×115
292/560E	560×750×115
292/600	600×800×122
292/600E	600×800×122
292/630	630×850×122
292/630E	630×850×122
292/670	670×900×140
292/670E	670×900×140
292/710	710×950×145
292/710E	710×950×145
292/750	750×1000×150
292/750E	750×1000×150
292/800	800×1060×155
292/800E	800×1060×155
292/850	850×1120×160
292/850E	850×1120×160
292/900	900×1180×170
292/900E	900×1180×170
292/1060	1060×1400×206
29317	85×150×39
29318	90×155×39
29318X2	90×155×30
29320	100×170×42
29322	110×190×48
29324	120×210×54
29326	130×225×58
29326E	130×225×58
29328	140×240×60
29330	150×250×60
29332	160×270×67
29334	170×280×67
29334X3	170×290×73
29336	180×300×73
29338X3M	190×320×78
29338	190×320×78
29340	200×340×85
29340/YA	200×340×85
29344	220×360×85
29344E	220×360×85
29348	240×380×85
29348E	240×380×85
29352	260×420×95
29352E	260×420×95
29356	280×440×95
29356E	280×440×95
29360	300×480×109
29360E	300×480×109
29364	320×500×109
29364E	320×500×109
29368	340×540×122
29368E	340×540×122
29372	360×560×122
29372E	360×560×122
29376	380×600×132
29376E	380×600×132
29380	400×620×132
29380E	400×620×132
29384	420×650×140
29384E	420×650×140
29388	440×680×145
29388E	440×680×145
29392	460×710×150
29392E	460×710×150
29396	480×730×150
29396E	480×730×150
293/500	500×750×150
293/500E	500×750×150
293/530	530×800×160
293/530E	530×800×160
293/560	560×850×175
293/560E	560×850×175
293/600	600×900×180
293/600E	600×900×180
293/630	630×950×190
293/630E	630×950×190
293/670	670×1000×200
293/670E	670×1000×200
293/710	710×1060×212
293/710E	710×1060×212
293/750	750×1120×224
293/750E	750×1120×224
293/800	800×1180×230
293/800E	800×1180×230
293/850E	850×1250×243
293/900E	900×1320×250
29412	60×130×42
29412E	60×130×42
29413	65×140×45
29413E	65×140×45
29414	70×150×48
29415	75×160×51
29416	80×170×54
29416L1	80×170×54
29416Q1	80×170×54
29417	85×180×58
29418	90×190×60
29420	100×210×67
29422	110×230×73
29424	120×250×78
29424E	120×250×78
29426	130×270×85
29428	140×280×85
29430	150×300×90
29430E	150×300×90
29432	160×320×95
29434	170×340×103
29434E	170×340×103
29436	180×360×109
29438	190×380×115
29438E	190×380×115
29440J	200×400×122
29440	200×400×122
29444	220×420×122
29444E	220×420×122
29448	240×440×122
29448E	240×440×122
29452	260×480×132
29452E	260×480×132
29456E	280×520×145
29456	280×520×145
29460	300×540×145
29460E	300×540×145
29464	320×580×155
29464E	320×580×155
29468	340×620×170
29468F3	340×620×170
29468E	340×620×170
29472	360×640×170
29472E	360×640×170
29476	380×670×175
29476E	380×670×175
29480	400×710×185
29480E	400×710×185
29484	420×730×185
29488	440×780×206
29488E	440×780×206
29492	460×800×206
29492E	460×800×206
29496	480×850×224
29496E	480×850×224
294/500E	500×870×224
294/500	500×870×224
294/530	530×920×236
294/530E	530×920×236
294/560	560×980×250
294/560E	560×980×250
294/600	600×1030×258
294/600E	600×1030×258
294/630E	630×1090×280
294/670E	670×1150×290
294/710E	710×1220×308
294/750	750×1280×315
294/750M	750×1280×315
294/850	850×1440×354

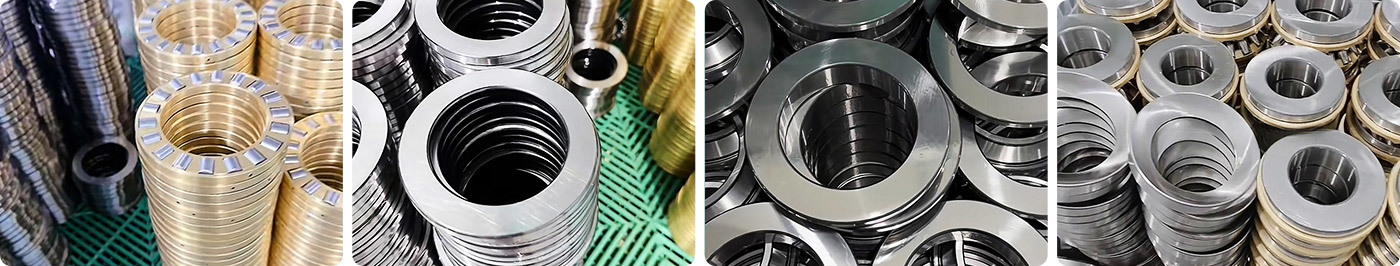

Warehousing and delivery

Shandong Delitong Bearing Co., Ltd., founded in 2002, is located in the industrial zone of Linqing, Shandong Province. It is a bearing production base integrating design, production and sales. The company has strong technical strength, complete measurement, physical and chemical inspection, and testing methods, strong product research and development capabilities, and technological innovation capabilities. It can design and produce bearings for various industries with 0, 2, 3, 6, 7, 8, 9, 7 types, 3 accuracy levels, and over 4000 specifications for various purposes. The products are widely used in industries such as metallurgy, shipbuilding, petroleum, chemical industry, mining, coal, hydropower, heavy machinery, etc.
