213xx Series

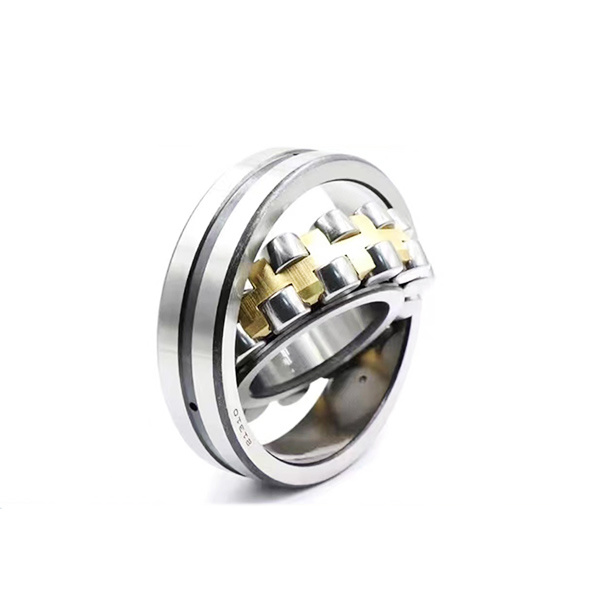

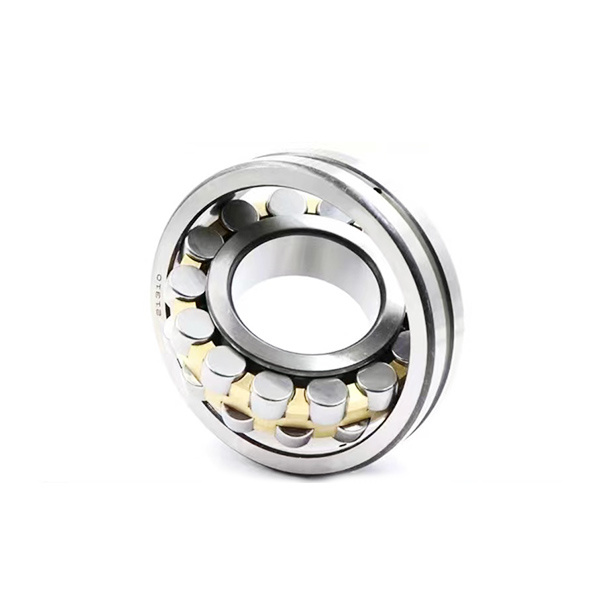

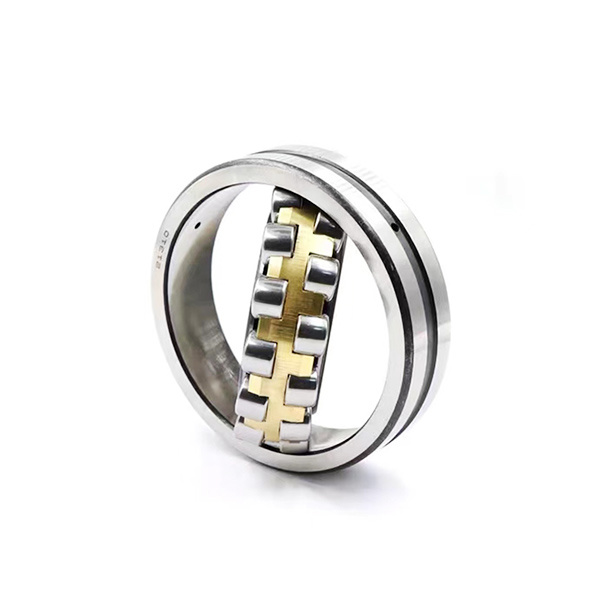

This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc.
Suffixe CC-Spherical roller bearing of C design but with improved roller guidance and reduced friction;
Suffixes：
C-Spherical roller bearing with symmetrical rollers and floating central guide ring;
CA-Spherical roller bearing of C design but with two integral inner ring flanges and machined cage;
CC-Spherical roller bearing of C design but with improved roller guidance and reduced friction;
CAC-Spherical roller bearing of CA design but with improved roller guidance and reduced friction;
E-Standard spherical roller bearing with modified internal design, increased carrying capacity and W33 features;
J-Pressed steel cage;
K-Tapered bore, taper 1:12 on diameter;
K30- Tapered bore, taper 1:30 on diameter;
M- Machined brass cage ;

Bearing Number	d mm	D mm	B mm
21304 CC	20	52	15
21305 CC	25	62	17
21306 CC	30	72	19
21307 CC	35	80	21
21308 CC	40	90	23
21309 CC	45	100	25
21310 CC	50	110	27
21311 CC	55	120	29
21312 CC	60	130	31
21313 CC	65	140	33
21314 CC	70	150	35
21315 CC	75	160	37
21316 CC	80	170	39
21317 CC	85	180	41
21318 CC	90	190	43
21319 CC	95	200	45
21320 CC	100	215	47
21322 CC	110	240	50

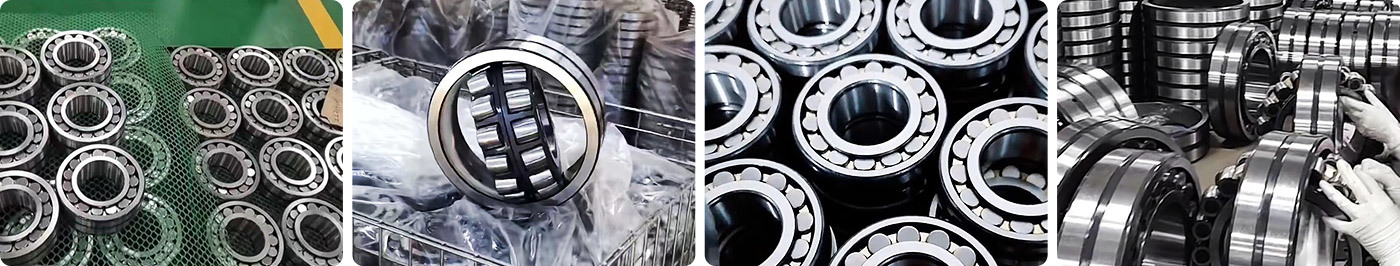

Warehousing and delivery

Shandong Delitong Bearing Co., Ltd., founded in 2002, is located in the industrial zone of Linqing, Shandong Province. It is a bearing production base integrating design, production and sales. The company has strong technical strength, complete measurement, physical and chemical inspection, and testing methods, strong product research and development capabilities, and technological innovation capabilities. It can design and produce bearings for various industries with 0, 2, 3, 6, 7, 8, 9, 7 types, 3 accuracy levels, and over 4000 specifications for various purposes. The products are widely used in industries such as metallurgy, shipbuilding, petroleum, chemical industry, mining, coal, hydropower, heavy machinery, etc.
